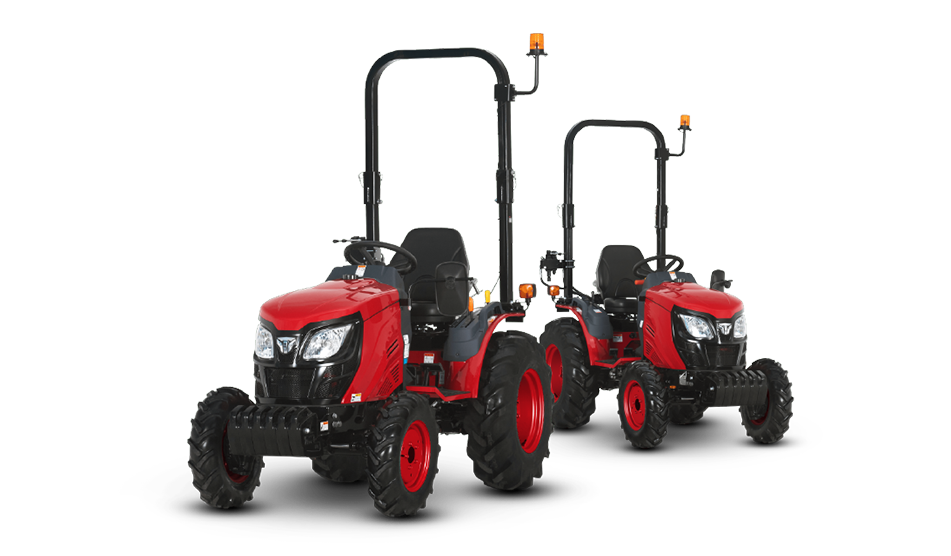

T25
Series 1 , Sub-Compact Tractors
Engine manufacturer
24.2 PS
Engine power
730.1 kg
Hitch lift capacity

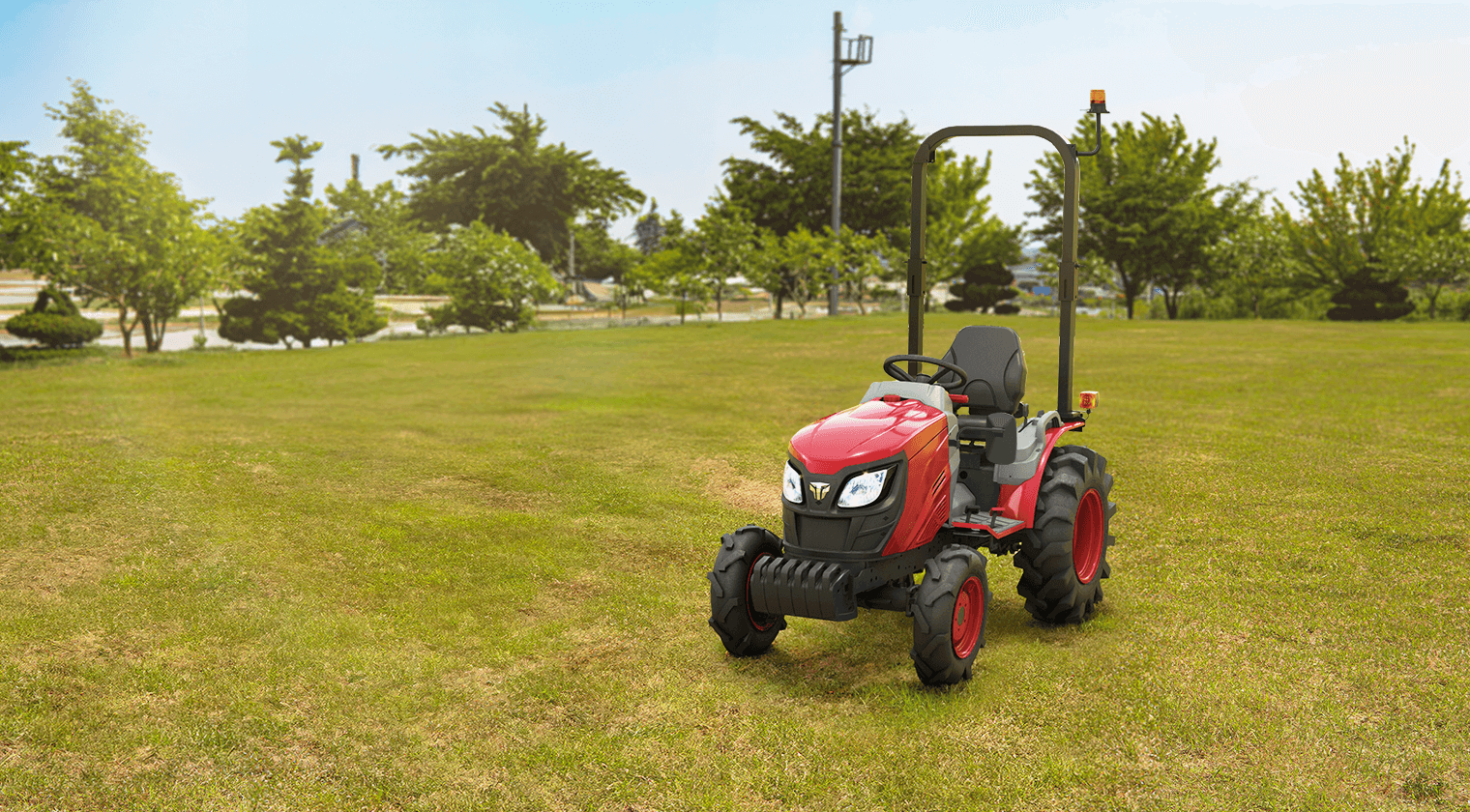

A SUB-COMPACT TRACTOR engineered for productivity inside and out
This tractor is proof that good things can come in small packages. The T25 enables brings you greater power without compromising on maneuverability, backed by a powerful engine and ergonomic operator controls.
*Images on this page are for illustrative purposes only. The actual product may vary.

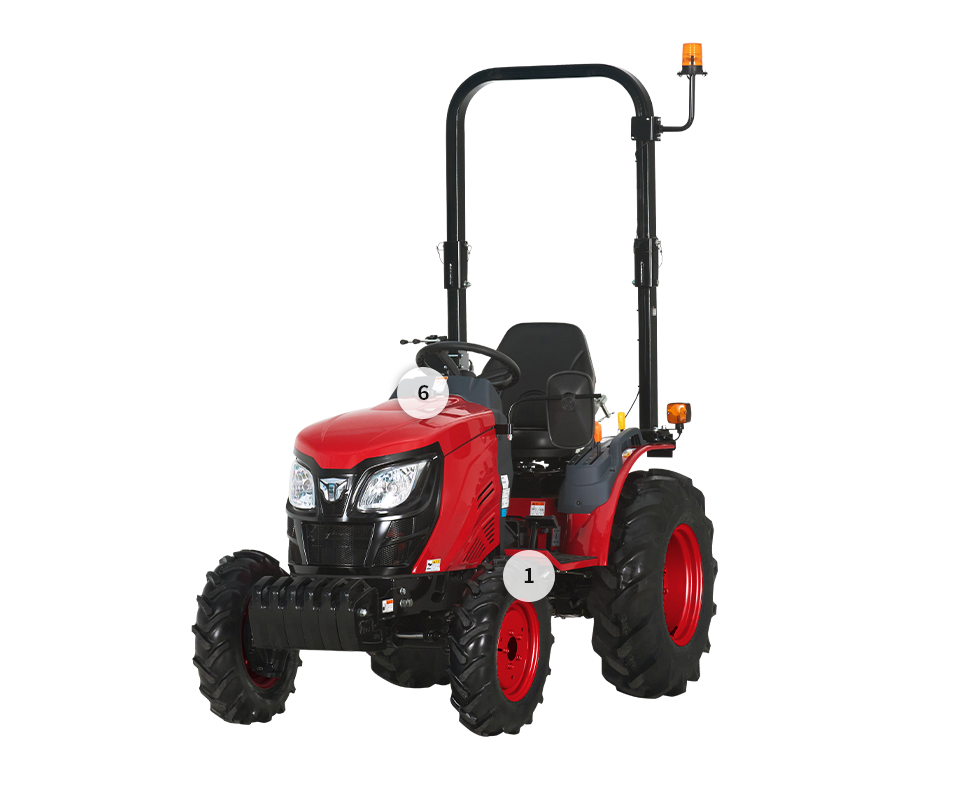

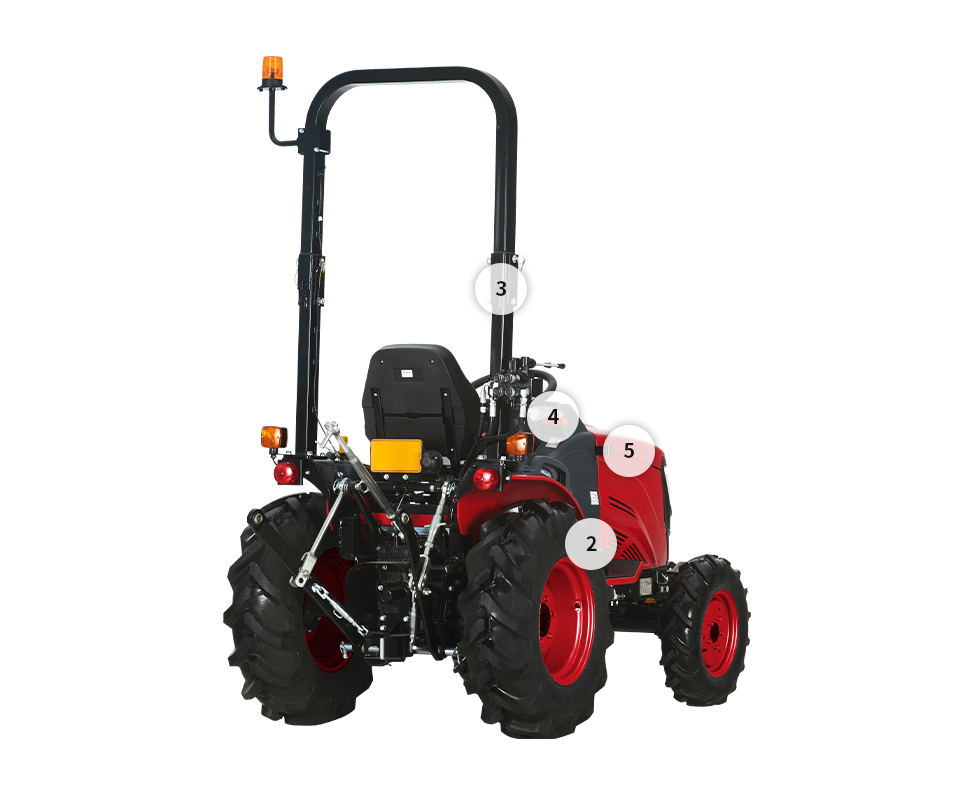

Ergonomic features for productivity
A wide operator cabin with a flat floor offers good visibility and ample leg room, while all controls are within arms’ reach. The accelerator, brake pedal, differential lock, and parking brake are easily accessible on the floor of the cabin, located precisely where you expect them to be.

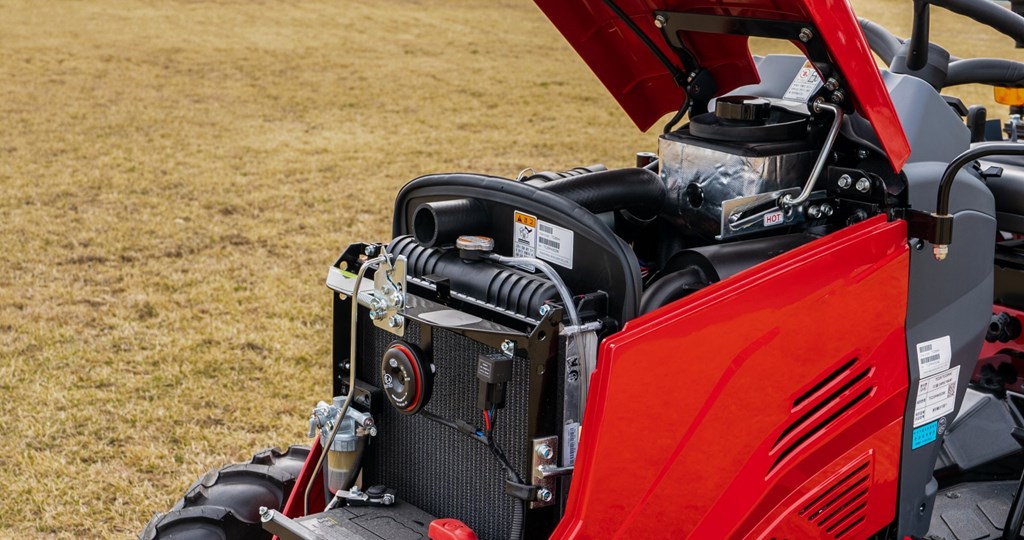

Yanmar diesel engine
The Stage V Yanmar engine delivers high torque and efficient revs compared to competitors in its class to maximize fuel efficiency.

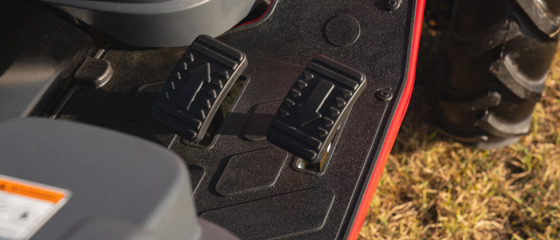

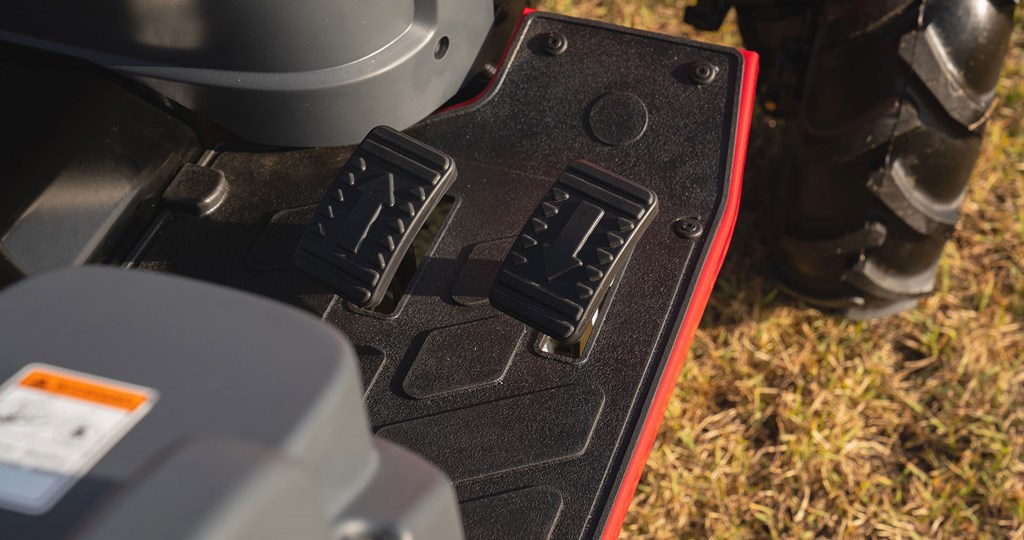

2-range HST (TC25NH)
The 2-speed HST makes it easy to maneuver the tractor forward and backward with the pedals.

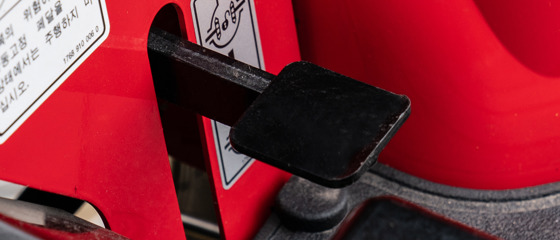

Differential lock
Locking the differential ensures that the wheels rotate at the same speed to facilitate turning and to prevent twisting of the wheel axle.

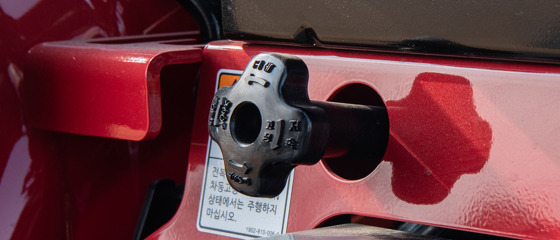

Hydraulic speed control handle
The handle enables you to adjust the hydraulic descent speed, switching seamlessly between low and high speeds.

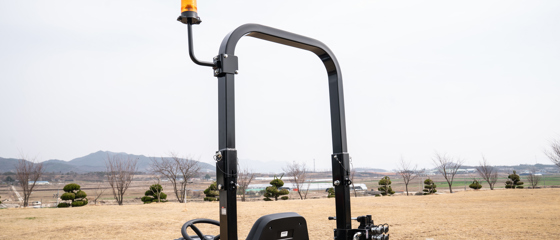

Foldable ROPS for storage in low-ceiling structures
The Roll Over Protective Structure (ROPS) of the tractor is designed to be folded, allowing for easy storage in low-ceiling garages or sheds.

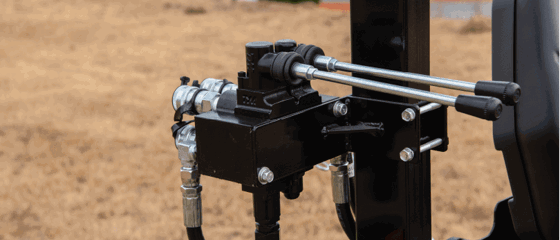

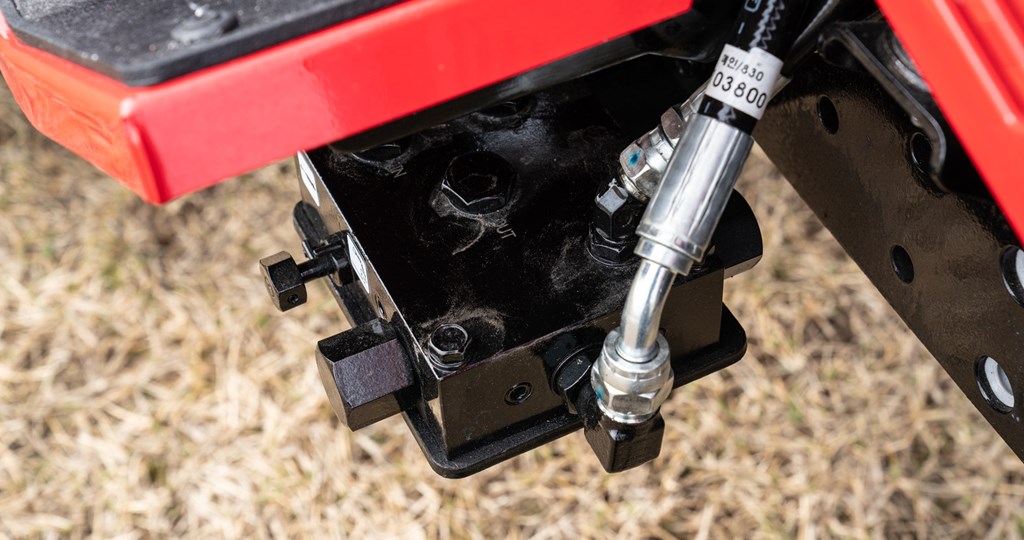

External hydraulic lever
The external lever allows for fine tuning of rear attachments.

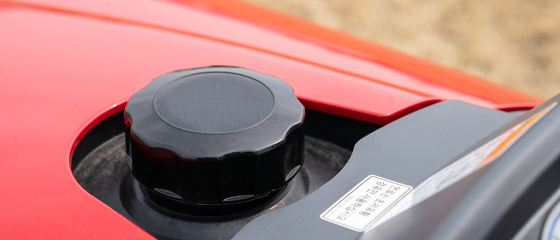

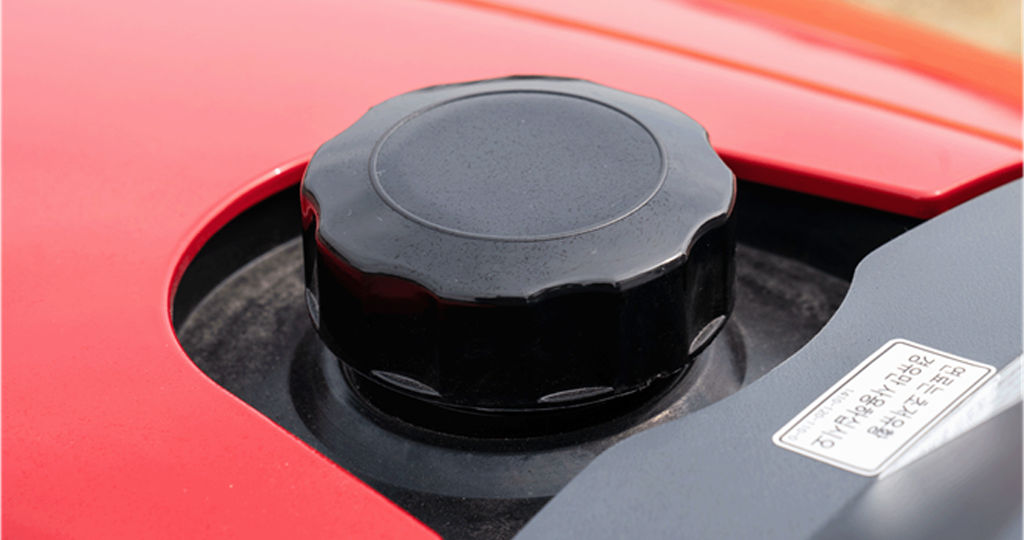

High-capacity fuel tank for time-intensive work
The high-capacity fuel tank enables drivers to work longer without stopping to refuel, all while boosting the engine's fuel efficiency.
ALL THE RIGHT FEATURES TO GET THE JOB DONE

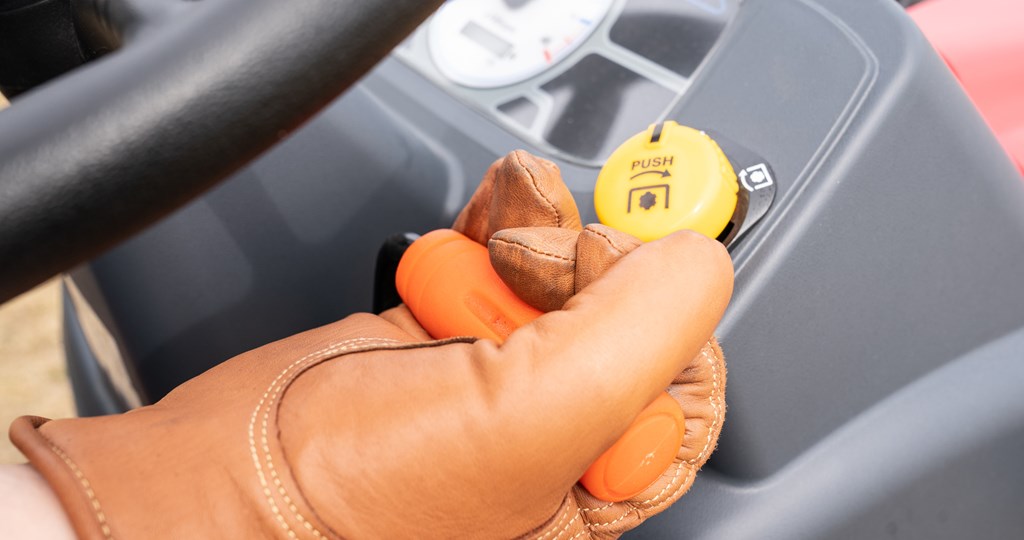

Complete a range of jobs with a TYM Series 1 tractor. Achieve results faster with a powerful high-torque engine, control implements easily with a PTO switch, and stay energized with an ergonomically designed operator cabin.
Designed for applications in and around your property
Series 1 tractors are designed to do more without sacrificing ease of operation and maneuverability.
Attach a variety of attachments to your tractor for lawn care, home gardening, and more to help you accomplish a wide range of tasks.
Landscaping
With minimal turning radius, easy controls, and a nimble, lightweight design, this compact tractor is ideal for large lawns.
Arable Farming
With a TYM sub-compact tractor, you can leverage multi-functional capabilities and ease of maneuverability to build and maintain your home garden.
Cleaning
Complete chores around your property with ease. From removing dirt from your driveway to moving fallen leaves, a TYM sub-compact tractor offers the right mix of size and power for efficient performance.
Livestock & Poultry
Sub-compact tractors support you in managing your barn and stables with their agile design, comfortable handling, and minimal turning radius.

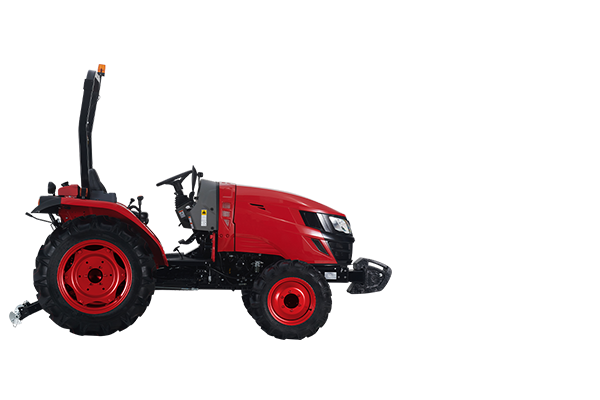

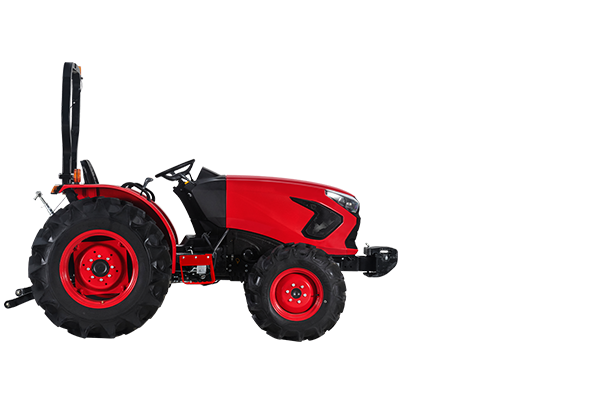

| Tractors Model | T25  | K42  | T48  |
Engine manufacturer | Yanmar 3TNV80F (NXDKTFX) | TYM T2000 | TYM T2300 |
Engine power | 24.2 PS | 17.8 kW | 43 PS | 31.5 kW | 48.3 PS | 35.5 kW |
Rated engine speed | 3000 rpm | 2600 rpm | 2600 rpm |
Displacement | 1267 cc | 77.3 cu. in. | 2084 cc | 127.17 cu. in. | 2286 cc | 139.5 cu. in. |
No. of speeds | F2 x R2 (Manual) / 2 range (HST) | F12 × R12 | F12 × R12 |
Hitch lift capacity | 730.1 kg | 1610 lb | 1340 kg | 2954 lb | 1220 kg | 2689.64 lb |
PTO rear | 540 rpm | 540/750 rpm | 540/750 rpm |
Fuel tank | 20 L | 5.3 gal | 27 L | 7.13 gal | 34 L | 9.0 gal |
Overall length with 3-point hitch | 2395 mm | 94.3 in. | 3090 mm | 121.65 in. | 3220 mm | 126.77 in. |
Overall width | 1170 mm | 46.1 in. | 1415 mm | 55.70 in. | 1330 mm | 54.5 in. |
Wheelbase | 1460 mm | 57.5 in. | 1670 mm | 65.74 in. | 2155 mm | 84.84 in. |
Height to top of ROPS | 2500 mm | 98.4 in. | 2360 mm | 92.91 in. | 2560 mm | 100.78 in. |
Min. ground clearance | 240 mm | 9.4 in. | 365 mm | 14.37 in. | 345 mm | 13.58 in. |
Weight with ROPS | 835 kg | 1840.0 lb (Manual) / 820 kg | 1807.8 lb (HST) | 1535 kg | 3384.09 lb | 1520 kg | 3351.02 lb |
Weight with cab | - | - | - |
Agricultural - Front | 6.0-12 | 8-16 | 7-16 |
Agricultural - Rear | 9.5-16 | 12.4-24 | 11.2-24 |
