T224
Series 1 , Sub-Compact Tractors
Engine manufacturer
21.5 hp
Engine power
1100 lb
Hitch lift capacity
A SUB-COMPACT TRACTOR DESIGNED FOR FULL-SIZED TASKS
Perform the tasks fit for a full-size tractor while enjoying the agility and ease of use of a riding mower. With its unmatched versatility, the T224 embodies the essence of TYM Series 1 tractors as an indispensable groundskeeper for every property.
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

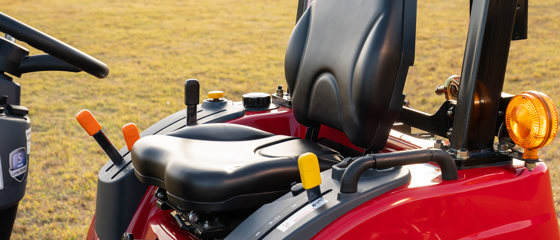

Ergonomic features for enhanced productivity
A wide operator cabin with a flat floor offers good visibility and ample leg room, promoting comfortable operation. All controls are within arm’s reach, including a dial to control the cutting height of the mid-mount attachment. The accelerator, brake pedal, differential lock, and parking brake are easily accessible on the floor of the cabin, located precisely where you expect them to be. These features make this tractor easy to operate, even for novice drivers.

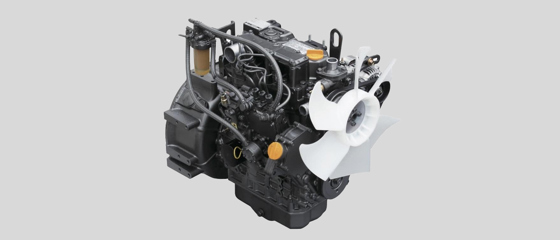

High torque, water-cooled Yanmar diesel engine
The Japanese made Yanmar engine offers more torque with less revs compared to competitors in its class. Since it is water cooled, the engine warms up faster and stabilized temperature more effectively while the tractor is running. The engine is also Tier 4 certified, including for noise emission standards.

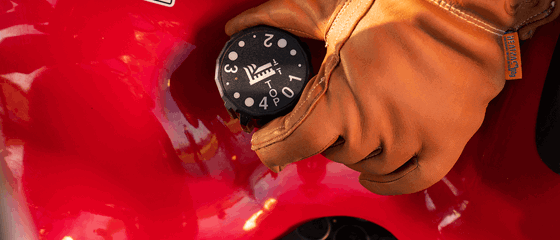

Mid-mount linkage for mowing attachments
The mid-mount linkage on the tractor allows easy installation for a mower up to 54 inches wide. Cutting height can be adjusted easily during operation using the dial on the operator console to tackle overgrowth more efficiently.

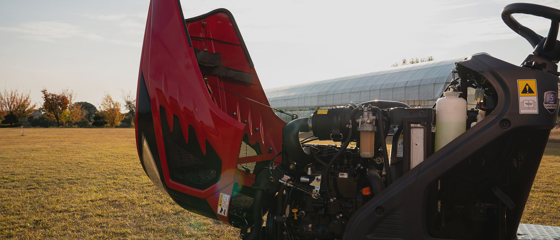

Easy-to-open hood for convenient maintenance
The tractor hood can be opened in one motion, providing easy access to the engine and other systems for daily checks, routine service, and maintenance. The side panel can also be removed easily without the need for specialized tools.

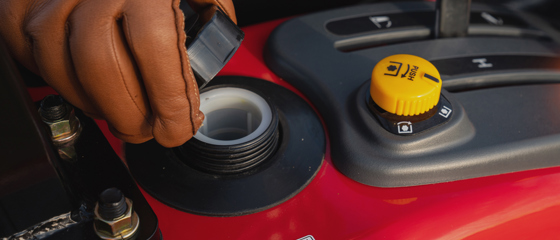

Accessible fuel tank for simpler refueling
Located on the right side of the driver’s seat, the fuel tank of this tractor is easy to open with an ergonomically designed twist-off cap. The tank can be topped up with fuel, even when implements are connected to the tractor.

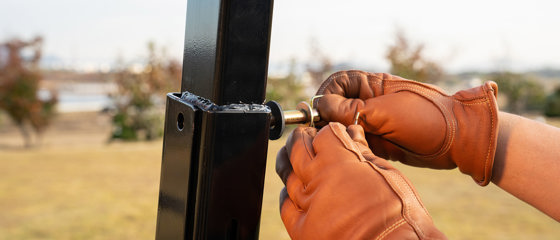

Foldable ROPS for low-ceiling structures
The Roll Over Protective Structure (ROPS) of the tractor is designed to be folded, allowing for easy storage in garages, sheds, and other low-ceiling structures.

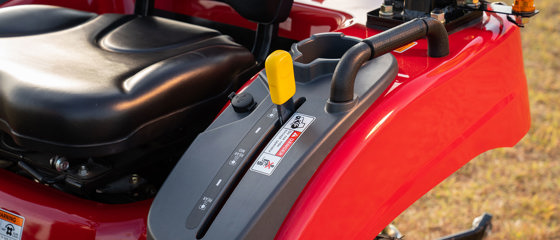

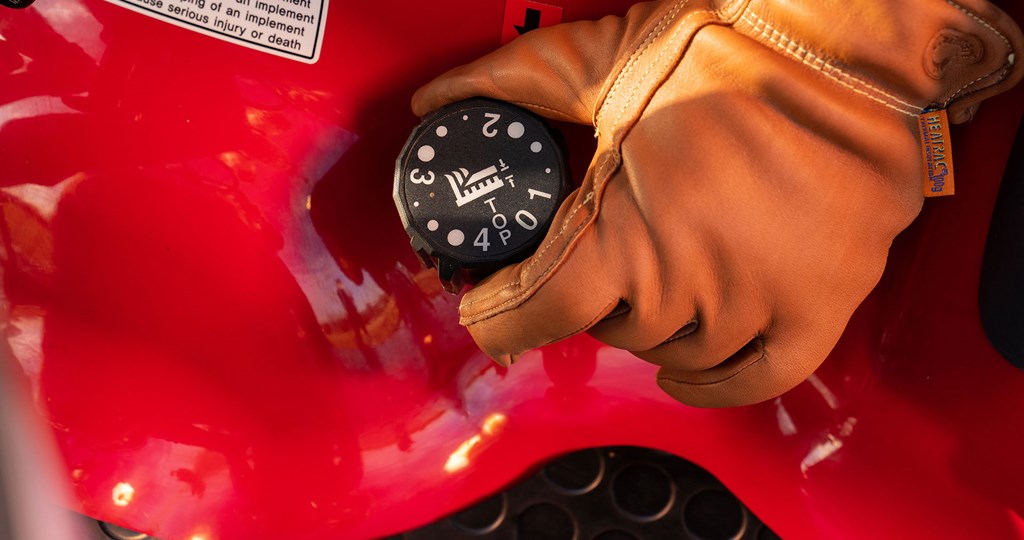

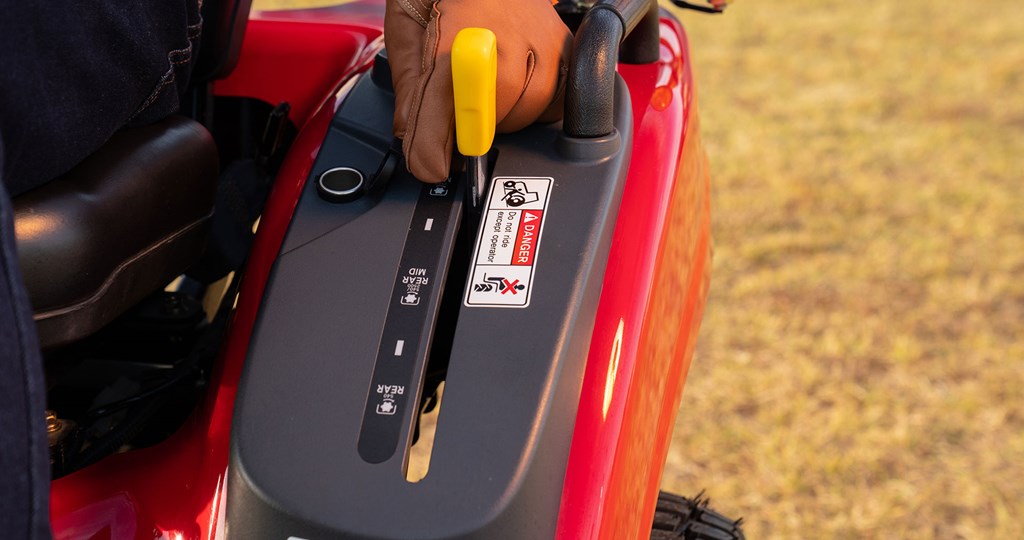

Controls to manage attachments
Even while the tractor is in motion, a dedicated PTO lever can be used to speed up or slow down implement rpm, while the dial can raise and lower implements at the prescribed speed.

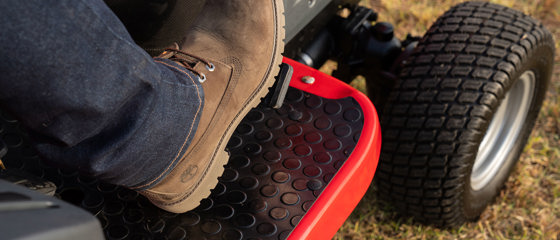

HST for infinitely variable drive speed
Responsive hydrostatic controls offers a smooth ride for operators, from the forward and reverse pedal to the powered steering wheel. These controls reduce the need for operator effort during a range of tasks, particularly while operating the optional front-end loader.

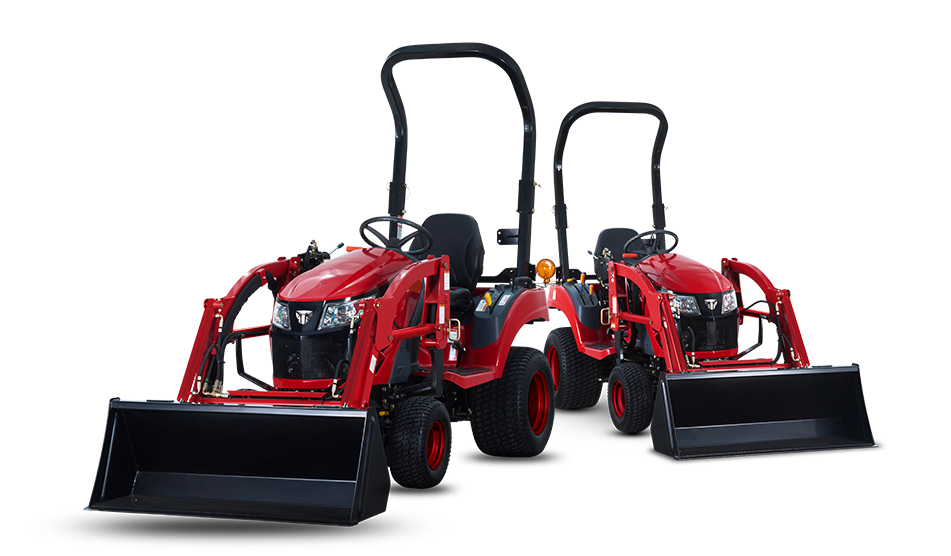

All the right features to get the job done
Complete a range of jobs with a TYM Series 1 tractor. Achieve results faster with a powerful high-torque engine, control attachments easily with a PTO switch, and stay energized with an ergonomically designed operator station.
Designed for applications in and around your property
This tractor allows you to go beyond a riding mower, without compromising on ease of operation and maneuverability. Multi-functional capabilities and a compact frame come together for a definitive upgrade from traditional machinery and maintenance tools.
Use this tractor to maintain a healthy lawn, build a home garden, tackle yard work, or create space for a lively home farm. Linkage points for a front loader, mid-mount and rear hitch enable you to attach a variety of attachments to complete tasks on your land.
Landscaping
With narrow dimensions, a small turning radius, intuitive controls, and a lightweight design, a TYM sub-compact tractor is the ideal machine for every home. A dedicated mid-mount linkage allows easy attachment to a range of mowers, while front-end and rear linkages allow for additional functionality compared to riding mowers.
Arable Farming
With a TYM sub-compact tractor, you can leverage multi-functional capabilities and ease of maneuverability to build and maintain your home garden. From tilling the land and spreading fertilizer to aerating and seeding your soil, this tractor is easy to operate and swap attachments, enabling you to grow all types of plant life, simply and effectively.
Cleaning
Complete chores around your property quickly and affordably. From brushing dust and dirt from your driveway to lifting and dumping fallen leaves and other waste, a TYM sub-compact offers the right mix of size and power for maneuverability and efficient engine performance.
Livestock & Poultry
Comfortable to sit in and easy to operate, a TYM sub-compact tractor has the light design and small turning radius to assist with maintaining animal life at home. Level the yard, trim grass, spread feed, move hay bales, clear waste and much more.
| Tractors Model | T224  | T254  | T264  |
Engine manufacturer | Yanmar 3TNV74F | Yanmar 3TNV80F | TYM T1100N2 |
Engine power | 21.5 hp | 16 kW | 23.9 hp | 17.8 kW | 24 hp | 18 kW |
Rated engine speed | 3200 rpm | 3000 rpm | 2800 rpm |
Displacement | 60.6 cu. in. | 993 cc | 77.3 cu. in. | 1267 cc | 71.7 cu. in. | 1175 cc |
No. of speeds | 2 Range | Infinite 2-Range | Infinite 2-Range |
Hitch lift capacity | 1100 lb | 499 kg | 1214 lb | 551 kg | 1534 lb | 696 kg |
PTO rear | 540 rpm | 540 rpm | 540 rpm |
Fuel tank | 6.6 gal | 25 L | 5.8 gal | 22 L | 6.6 gal | 25 L |
Overall length with 3-point hitch | 94.2 in. | 2394 mm | 100.5 in. | 2553 mm | 107.8 in. | 2740 mm |
Overall width | 44.5 in. | 1130 mm | 45.8 in. | 1164 mm | 52.8 in. | 1342 mm |
Wheelbase | 53.1 in. | 1350 mm | 57.5 in. | 1460 mm | 58.3 in. | 1480 mm |
Height to top of ROPS | 86.6 in. | 2200 mm | 91.3 in. | 2320 mm | 89.8 in. | 2280 mm |
Min. ground clearance | 8.3 in. | 210 mm | 9.4 in. | 240 mm | 7.7 in. | 196 mm |
Weight with ROPS | 1472 lb | 668 kg | 1638 lb | 743 kg | 1881 lb | 853 kg |
Weight with cab | - | - | - |
R1 Agricultural - Front | BAR F 16x6.50-8 | 6.0-12 | - |
R1 Agricultural - Rear | BAR R 24x12.00-12 | 9.5-16 | - |
