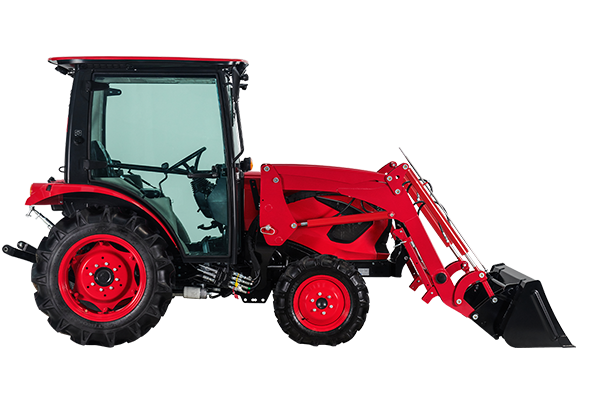

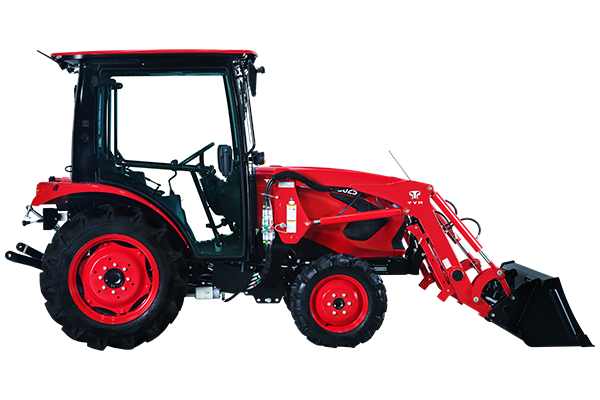

T3025C
Series 3 , Compact Tractors
Engine manufacturer
24 hp
Engine power
3306 lb
Hitch lift capacity
A compact tractor robust enough to take on challenges of all sizes
The 3025C tractor is designed for peak performance through versatility and durability. Offering customizable options throughout, this mid-sized Series 3 compact tractor helps you achieve your goals in applications of varying intensities.
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

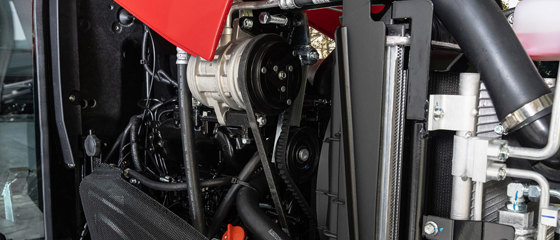

The highly economical TYM engine
The powerful 24-horsepower TYM engine eliminates the need for regeneration, reducing maintenance costs and making servicing easier and more convenient.

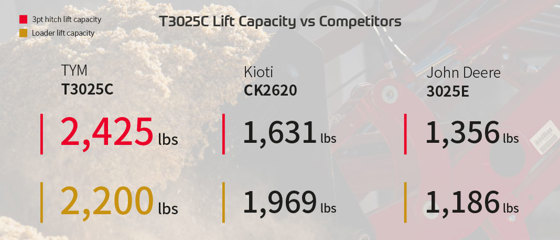

The most powerful 3-point hitch lift capacity
With the most powerful 3-point hitch lift capacity in its class, it can easily handle heavy implements and perform effortlessly in any work environment.

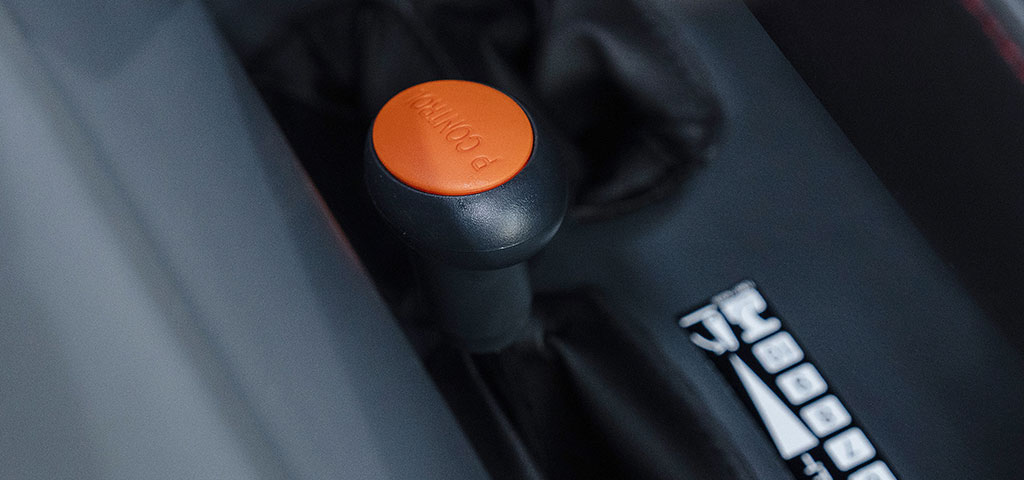

Cruise control
The cruise control feature allows you to set and maintain the engine RPM regardless of the tractor's load conditions.

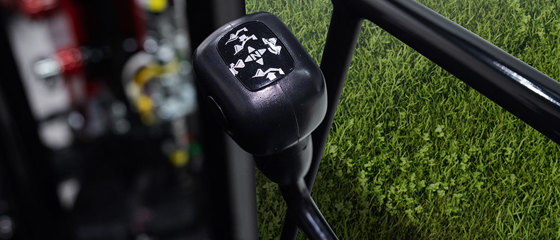

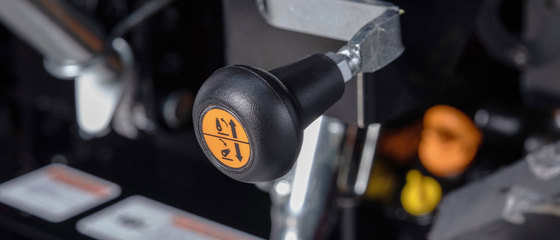

Factory-installed joystick
The standard loader joystick helps perform various tasks. By installing a 3rd function kit as needed, it enables even more diverse operations, such as grapple work.

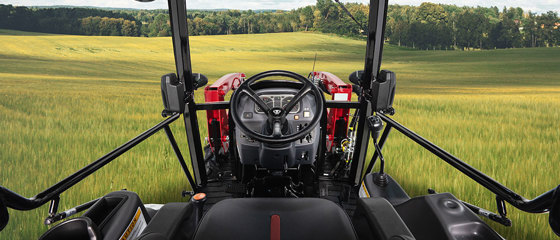

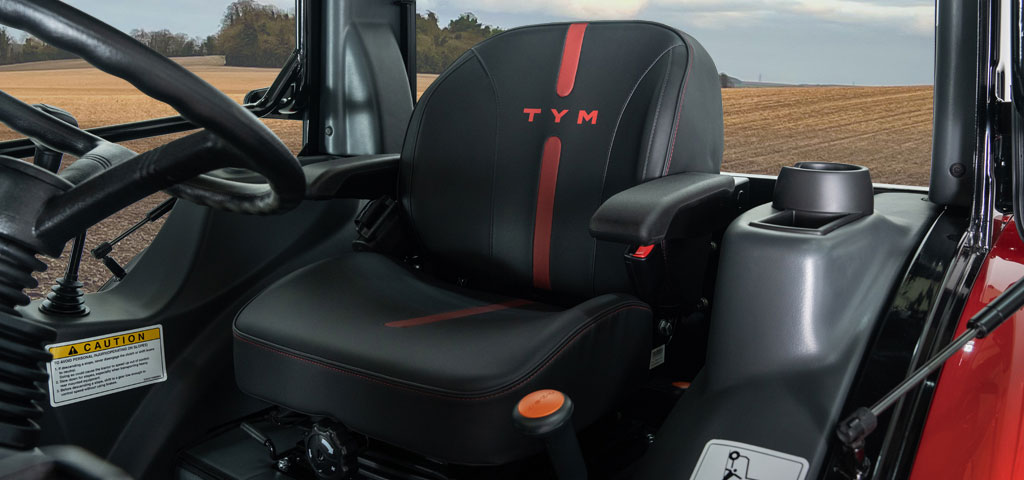

A cabin designed for a comfortable working environment in any condition
With the widest and most comfortable space in its class, this tractor maximizes operator comfort. It also offers enhanced visibility with standard heating and air conditioning.
External lever to adjust rear attachments
Along with in-cabin controls, this tractor has an external position lever near the 3-point hitch. Operators can adjust attachment positions immediately after connection without returning to the cabin, enabling quick and convenient attachment switching, which enhances tractor versatility.

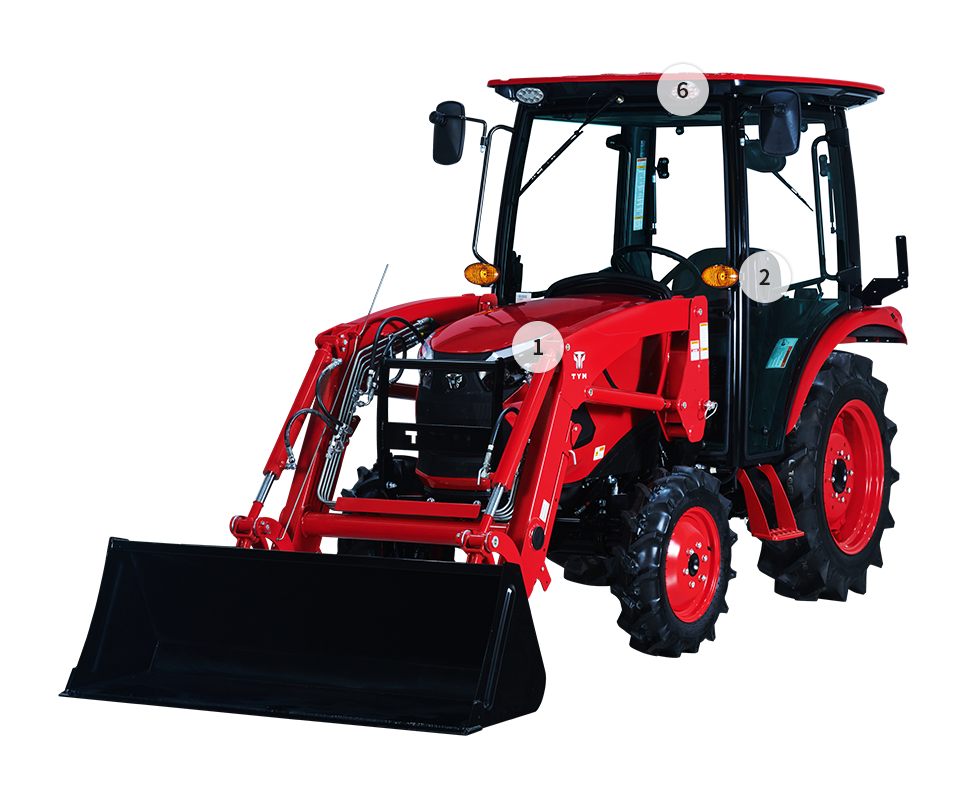

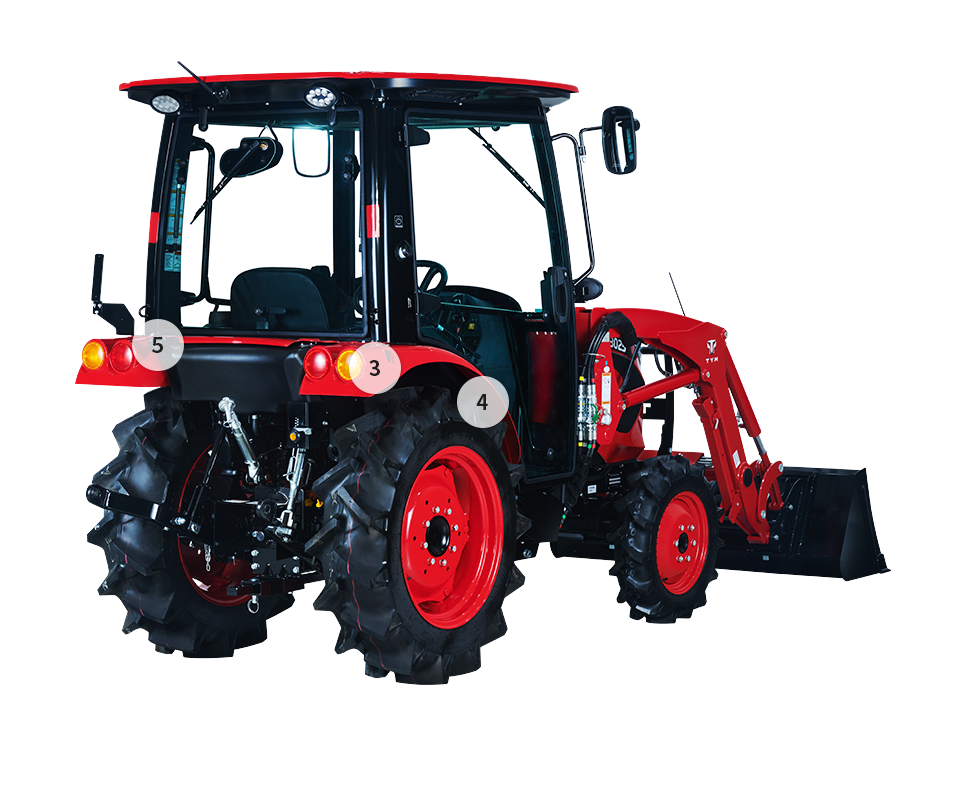

All the right features to get the job done

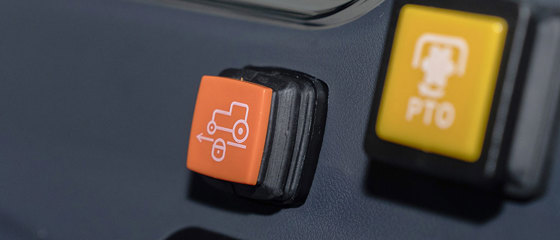

Complete a range of jobs with a TYM Series 3 tractor. Achieve results faster with a powerful high-torque engine, control attachments easily with a PTO switch, and stay energized with an ergonomically designed operator station.

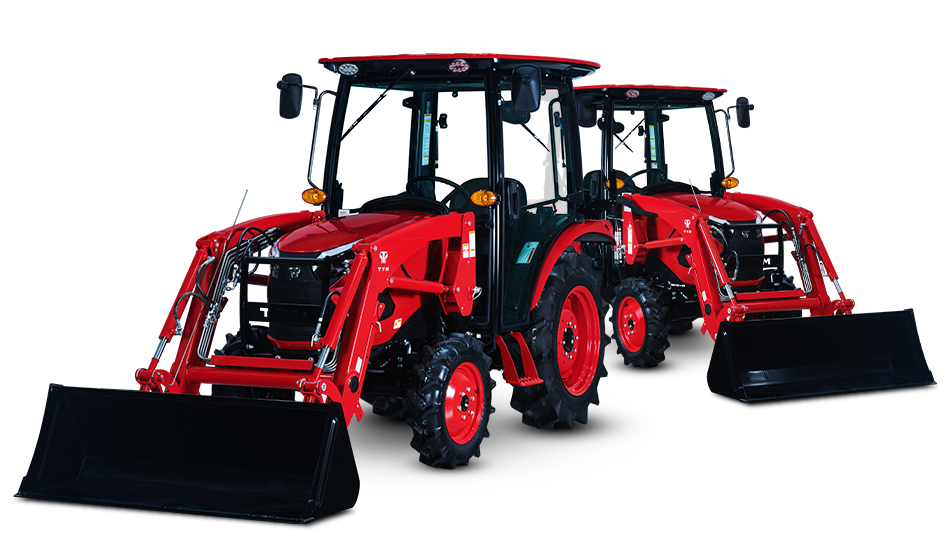

Designed for applications in and around your property
This compact tractor has enhanced lift capacities, maximizing work capabilities while maintaining one of the most compact frames. Functional design and precision engineering come together to create the ultimate tractor, from the Tier 4-certified engine and third-function ready rear hitch, to the ergonomically configured operator platform.
Use this tractor to maintain a healthy lawn, build a home garden, take care of yard work with ease, or create space for a lively home farm. Front-end loader, mid-mount mower and rear hitch linkages enable you to attach a variety of attachments and do more per cycle.
Arable Farming
Excellent for working in tight and narrow spaces, this tractor features powerful lift and leveling capabilities optimized for orchards, greenhouses, vineyards, and more.
Construction
Greater lift capabilities and gear controls help drive project completion efficiently, whether it’s a simple task like installing a mailbox or larger jobs like building a fence.
Snow Clearing

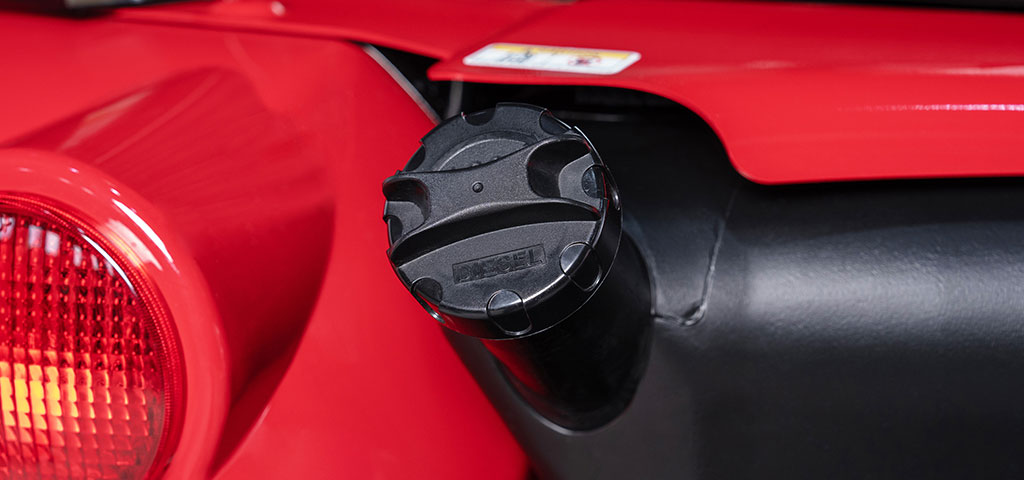

TYM tractors are equipped with better engine controls and larger fuel tanks, allowing them to perform a variety of tasks for longer periods of time, even in extreme cold conditions.
Landscaping
Greater control over engine speeds and compatibility with a range of specialized attachments allow access to narrower spaces, promoting productivity and faster results.
| Tractors Model | T3025C  | 3515C  | 2515  |
Engine manufacturer | TYM T1700N6 | TYM T1700N2 | TYM T1700N6 |
Engine power | 24 hp | 18 kW | 35 hp | 26.2 kW | 24 hp | 18 kW |
Rated engine speed | 2100 rpm | 2600 rpm | 2100 rpm |
Displacement | 104.5 cu. in. | 1714 cc | 104.5 cu. in. | 1714 cc | 104.5 cu. in. | 1714 cc |
No. of speeds | 3-Range | 3-Range | 2515R: F12 x R12 2515H: 3-Range |
Hitch lift capacity | 3306 lb | 1500 kg | 3306 lb | 1500 kg | 3306 lb | 1500 kg |
PTO rear | 540 rpm | 540 rpm | 540 rpm |
Fuel tank | 7.1 gal | 27 L | 7.1 gal | 27 L | 7.1 gal | 27 L |
Overall length with 3-point hitch | 120.9 in. | 3071 mm | 120.9 in. | 3071 mm | 120.9 in. | 3071 mm |
Overall width | 56.6 in. | 1413 mm | 55.6 in. | 1430 mm | 56.3 in. | 1430 mm |
Wheelbase | 65.7 in. | 1670 mm | 65.7 in. | 1670 mm | 65.7 in. | 1670 mm |
Height to top of ROPS | - | - | 97.3 in. | 2471 mm |
Min. ground clearance | 13.1 in. | 334 mm | 14.4 in. | 366 mm | 14.4 in. | 366 mm |
Weight with ROPS | - | - | 2515R: 1356 kg | 2989 lb 2515H: 1347 kg | 2969 lb |
Weight with cab | 3313 lb | 1503 kg | 3552 lb | 1611 kg | - |
R1 Agricultural - Front | 7-16, 6PR | 7-16 | 8-16 |
R1 Agricultural - Rear | 11.2-24, 8PR | 11.2-24 | 12.4-24 |
