T394
Series 3 , Compact Tractors
Engine manufacturer
2639 lb
Hitch lift capacity
37.4 hp
Engine power

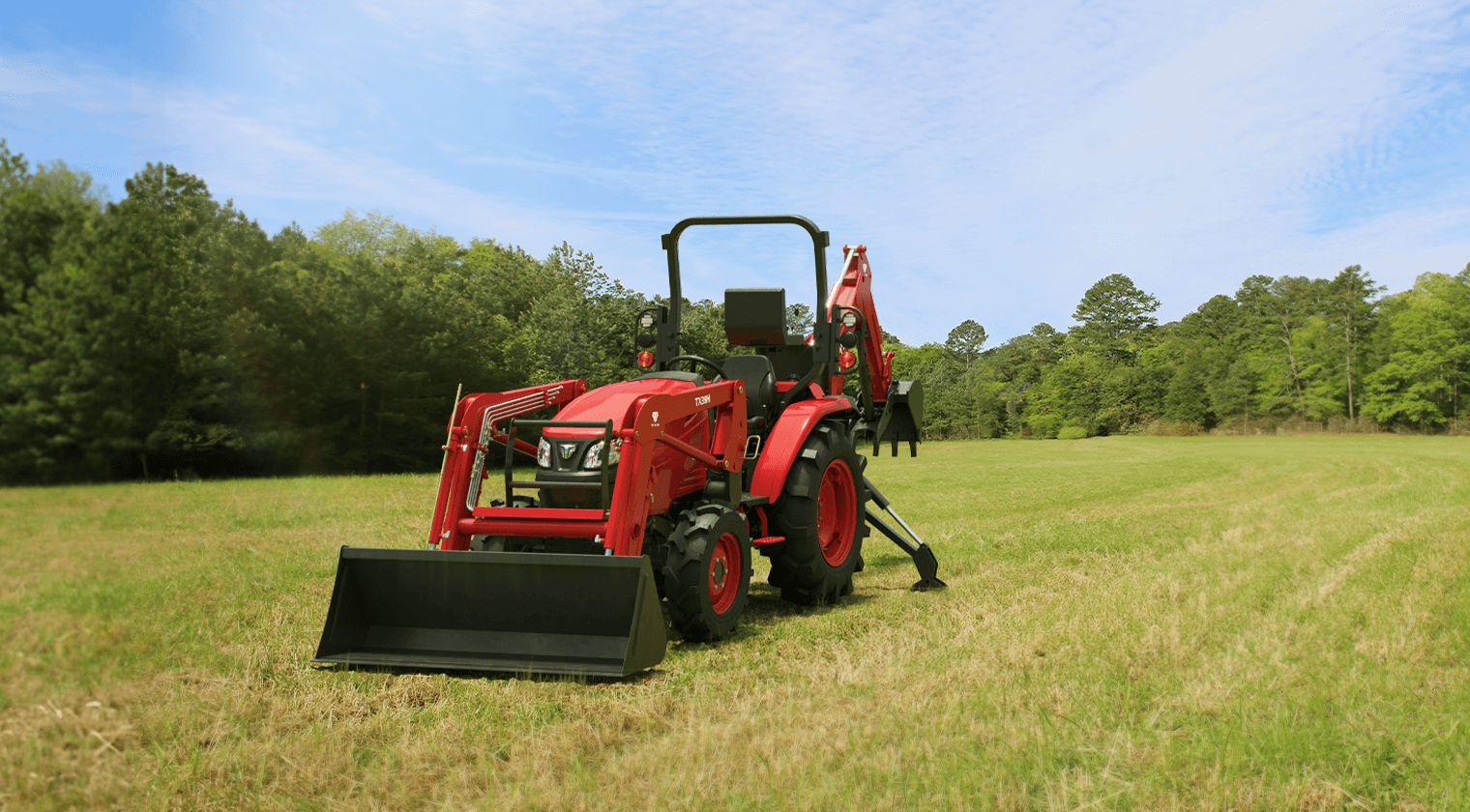

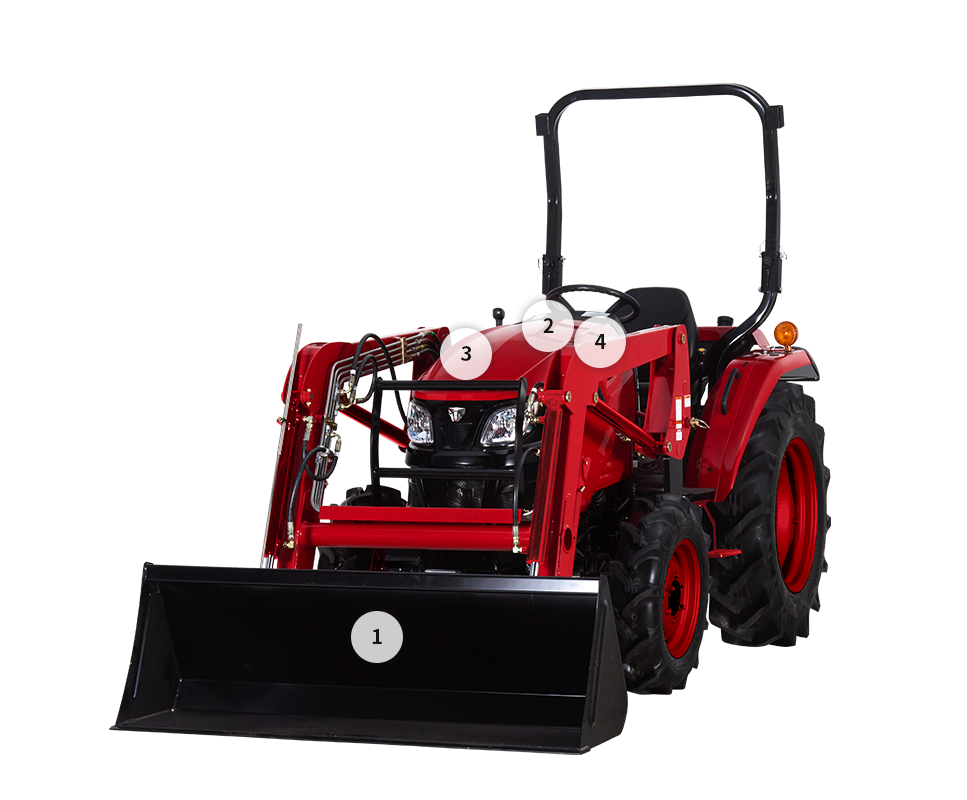

A compact tractor that outperforms its size and outsmarts limitations
Tackle challenges in tight spaces with the T394. Compact but durable and expertly engineered for efficiency, this tractor excels in greenhouses, orchards, and other confined areas where space is limited but power can’t be compromised.
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.
High torque, water-cooled Yanmar diesel engine
The Japanese made Yanmar engine offers more torque with less revs compared to competitors in its class. Since it is water cooled, the engine warms up faster and stabilizes temperature more effectively while the tractor is running. The engine is also Tier 4-certified, including for noise emission standards.

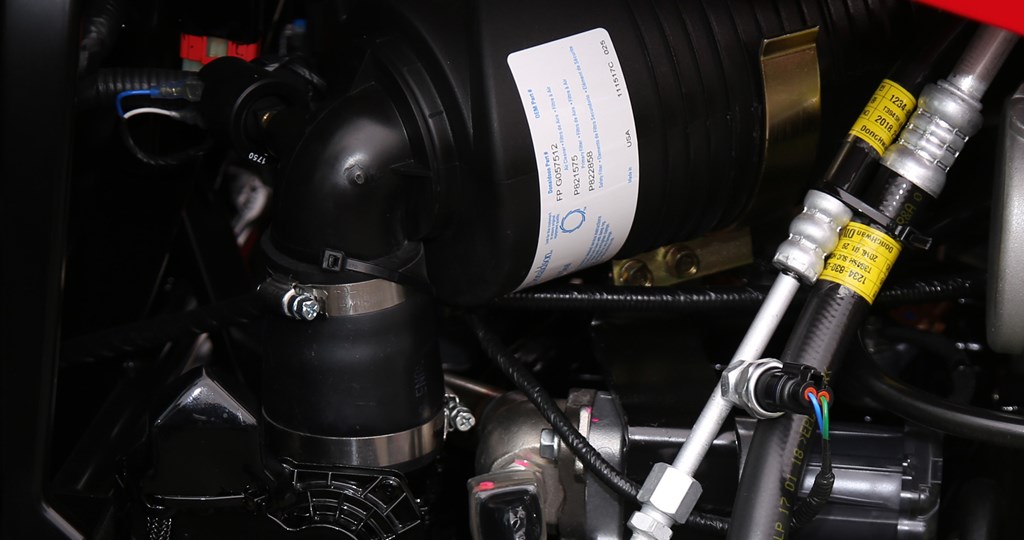

Dual filter air cleaner for engine longevity
An additional filter protects the tractor’s engine from harmful particles, drastically extending the engine life.

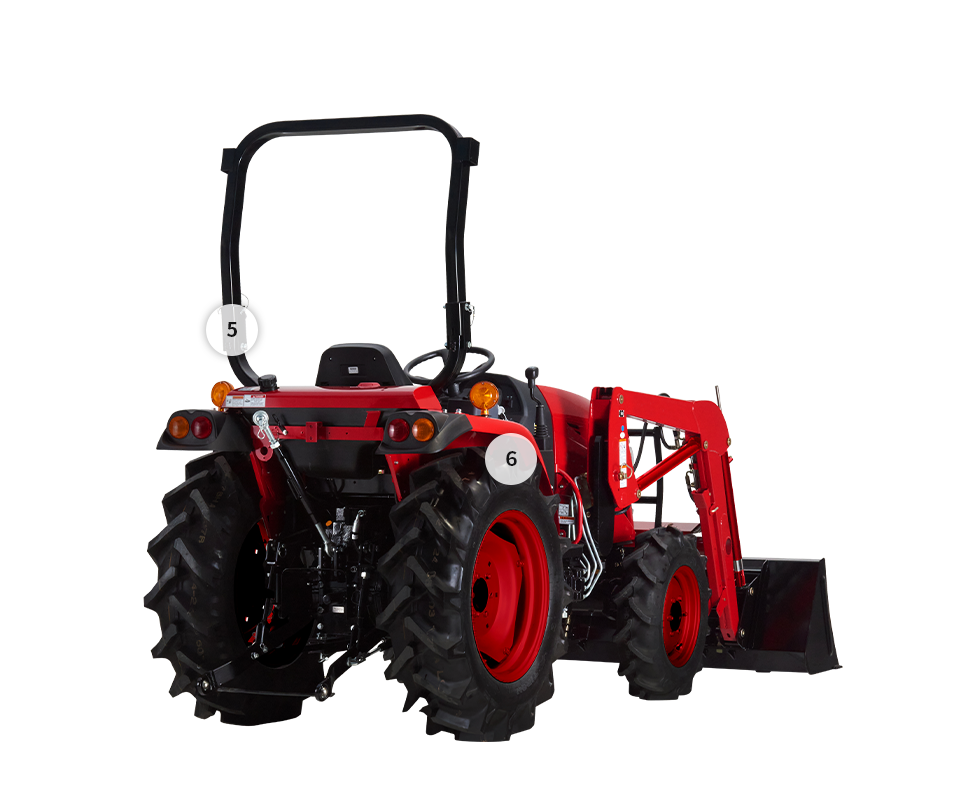

Cast iron components for sturdier connections
For enhanced durability under heavier loads, the rear of this tractor features robust cast-iron components to connect attachments. The material improves hydraulic efficiency and extends component lifecycles.
Easy to open hood for convenient maintenance
The tractor hood can be opened in one motion, providing easy access to the engine and other systems for daily checks, routine service, and maintenance. The side panel can also be removed easily without the need for specialized tools.

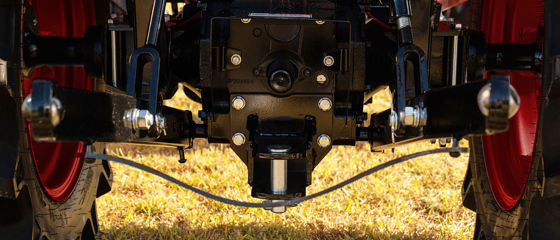

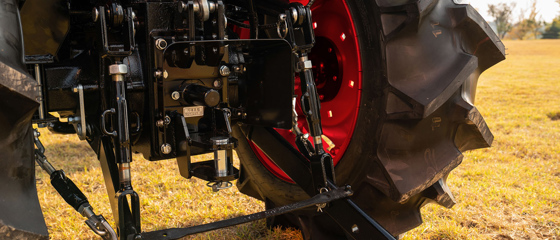

3-point hitch with powerful lift capacity
The 3-point linkage on the rear has an impressive lift capacity that reaches the end ball joints. The rear PTO control can be used to adjust rpm based on the task, increasing it for more intensive applications like slashing and digging.

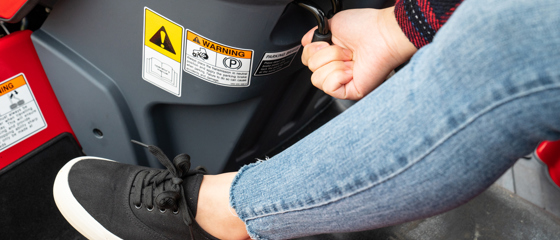

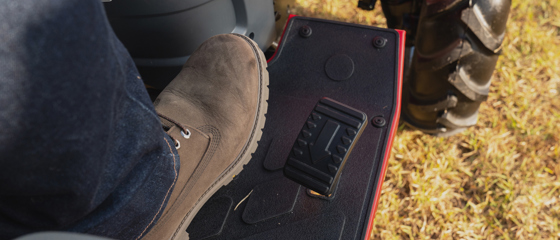

HST for infinitely variable drive speed
Responsive hydrostatic controls provide a smooth ride for operators, from the forward and reverse pedal to the powered steering wheel. These controls reduce the need for operator effort during a range of tasks, particularly while operating the optional front-end loader.

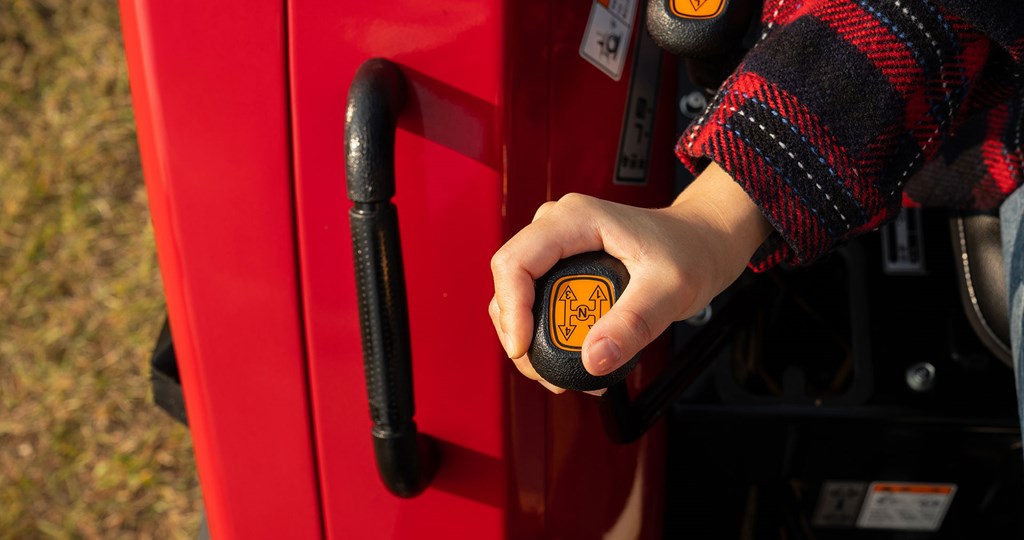

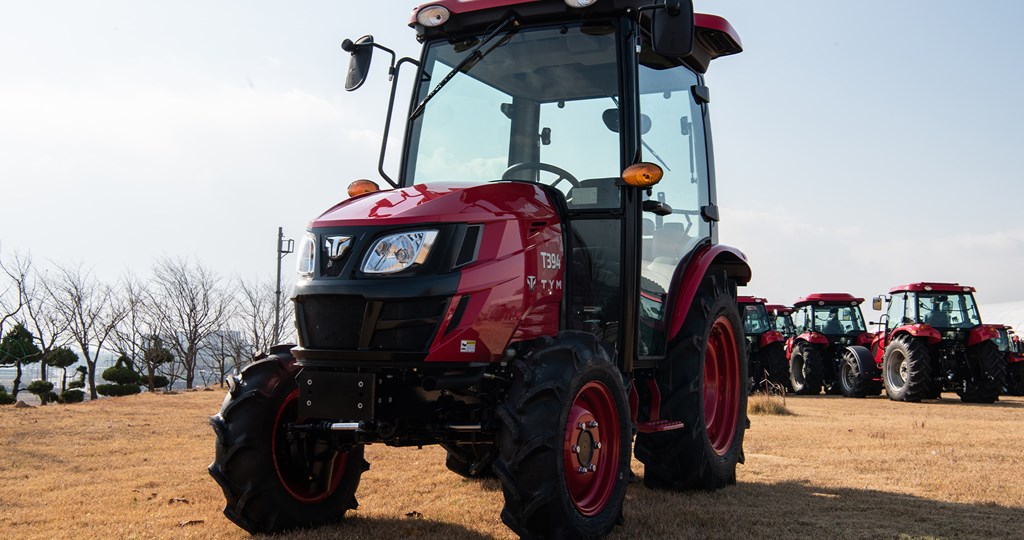

Powerful features to drive tractor performance

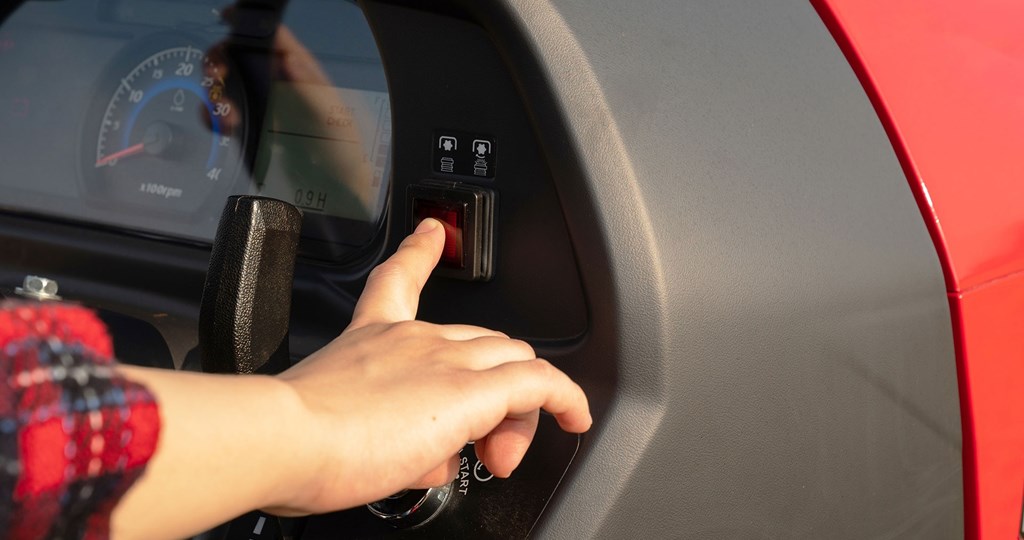

Complete a range of jobs with a TYM Series 3 tractor. Achieve results faster with a powerful high-torque engine, control attachments easily with a PTO switch, and stay energized with an ergonomically designed operator station.
Designed for applications in and around your property
This compact tractor has enhanced lift capacities, maximizing work capabilities while maintaining one of the most compact frames. Functional design and precision engineering come together to create the ultimate tractor, from the Tier 4-certified engine and third-function ready rear hitch, to the ergonomically configured operator platform.
Use this tractor to maintain a healthy lawn, build a home garden, take care of yard work with ease, or create space for a lively home farm. Front-end loader, mid-mount mower and rear hitch linkages enable you to attach a variety of attachments and do more per cycle.
Arable Farming
Excellent for working in tight and narrow spaces, this tractor features powerful lift and leveling capabilities optimized for orchards, greenhouses, vineyards, and more.
Construction
Greater lift capabilities and gear controls help drive project completion efficiently, whether it’s a simple task like installing a mailbox or larger jobs like building a fence.
Snow Clearing
TYM tractors are equipped with better engine controls and larger fuel tanks, allowing them to perform a variety of tasks for longer periods of time, even in extreme cold conditions.
Landscaping
Greater control over engine speeds and compatibility with a range of specialized attachments allow access to narrower spaces, promoting productivity and faster results.

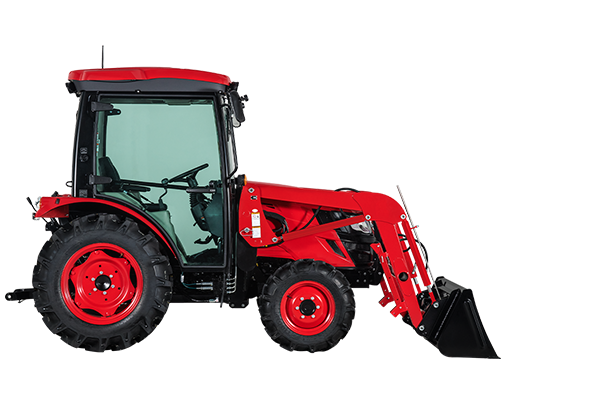

| Tractors Model | T394  | T394C  | T474  |
Engine manufacturer | Yanmar 3TNV88-CR | Yanmar 3TNV88-CR | TYM T2300N2 |
Engine power | 37.4 hp | 27.5 kW | 37.4 hp | 27.5 kW | 48.3 hp | 36 kW |
Rated engine speed | 3000 rpm | 3000 rpm | 2600 rpm |
Displacement | 100.2 cu. in. | 1642 cc | 100.2 cu. in. | 1642 cc | 139.5 cu. in. | 2286 cc |
No. of speeds | F12xR12 | F12xR12 | F12xR12 |
Hitch lift capacity | 2639 lb | 1197 kg | 2639 lb | 1197 kg | 2689.6 lb | 1220 kg |
PTO rear | 540 rpm | 540 rpm | 540 rpm |
Fuel tank | 9.0 gal | 34 L | 9.0 gal | 34 L | 9.0 gal | 34 L |
Overall length with 3-point hitch | 126 in. | 3200 mm | 126 in. | 3200 mm | 131 in. | 3320 mm |
Overall width | 53.5 in. | 1360 mm | 53.5 in. | 1360 mm | 54.5 in. | 1385 mm |
Wheelbase | 64.5 in. | 1640 mm | 66.9 in. | 1700 mm | 69.7 in. | 1770 mm |
Height to top of ROPS | 94.5 in. | 2400 mm | - | 94.5 in. | 2400 mm |
Min. ground clearance | 12.8 in. | 325 mm | 12.8 in. | 325 mm | 12.8 in. | 325 mm |
Weight with ROPS | 3020 lb | 1370 kg | - | 3289 lb | 1492 kg |
Weight with cab | - | 3417 lb | 1550 kg | - |
R1 Agricultural - Front | Farm Specialist 8.0-16 NHS TL 6PR | Farm Specialist 8.0-16 NHS TL 6PR | Farm Specialist 8.0-16 NHS TL 6PR |
R1 Agricultural - Rear | Farm Specialist 12.4-24 NHS TL 6PR | Farm Specialist 12.4-24 NHS TL 6PR | Farm Specialist 12.4-24 NHS TL 6PR |
