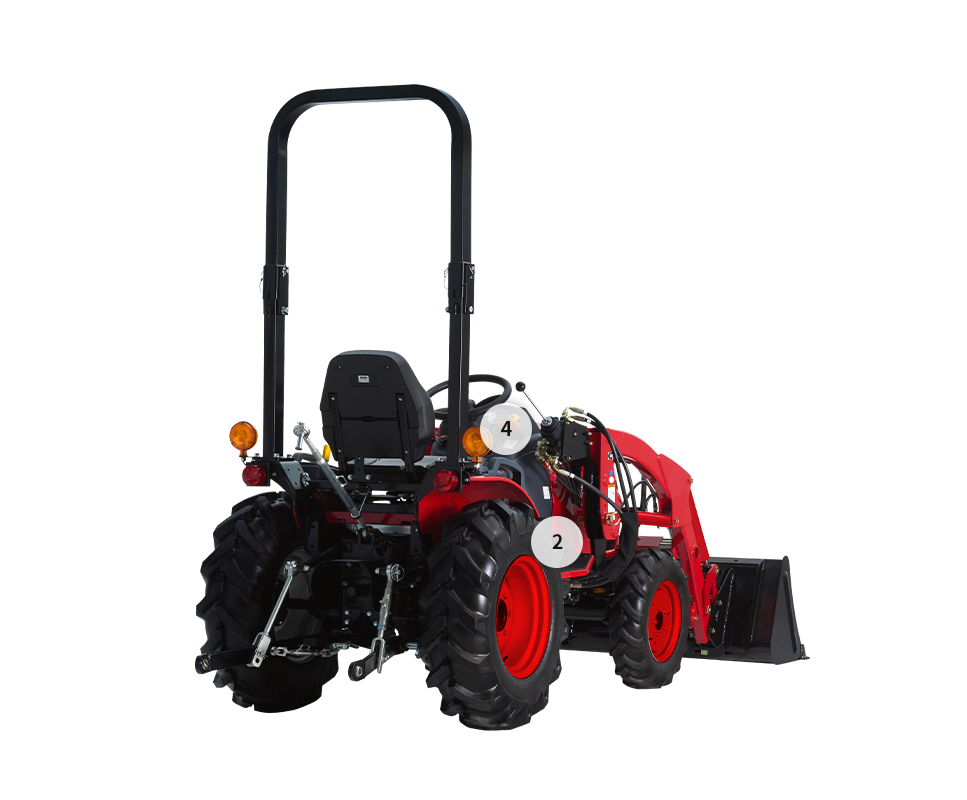

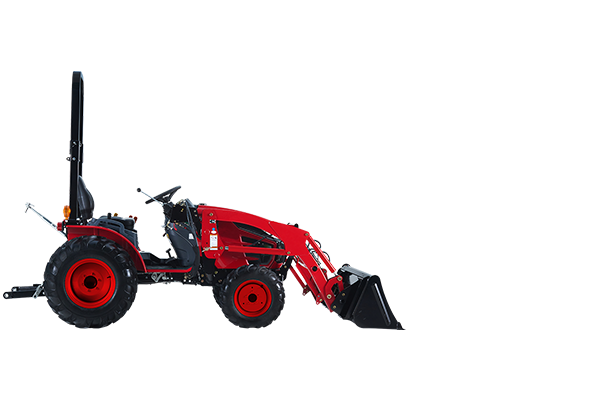

T255
Series 1 , Sub-Compact Tractors
Engine manufacturer
25.3 hp
Engine power
551 kg
Hitch lift capacity

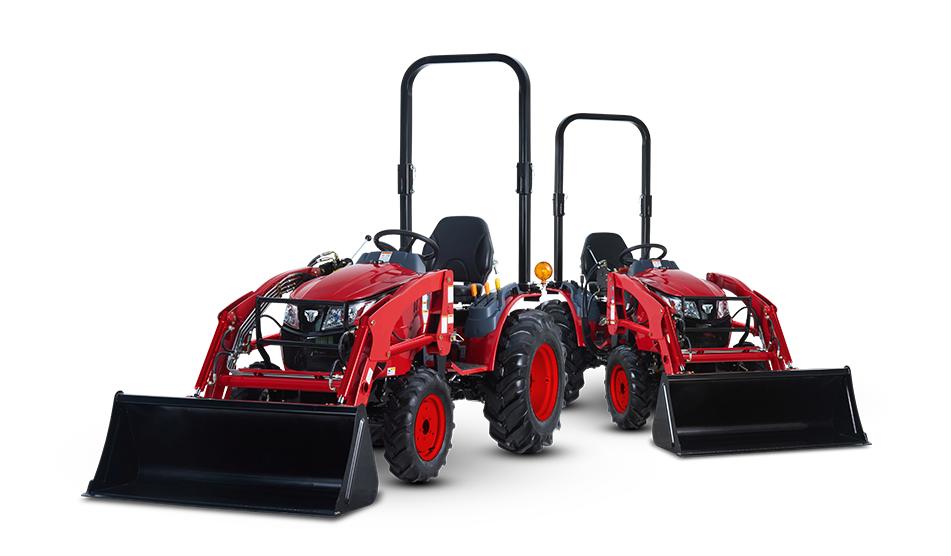

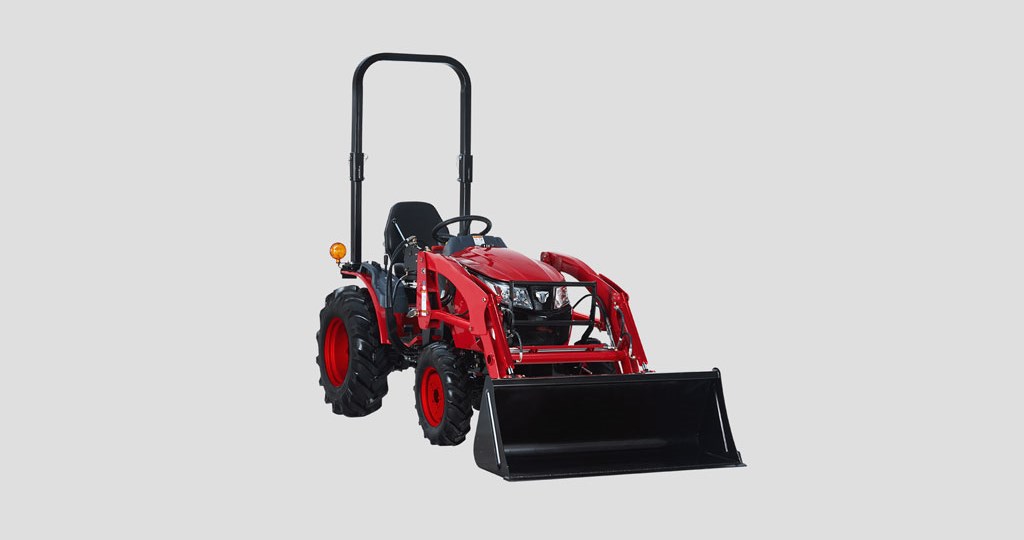

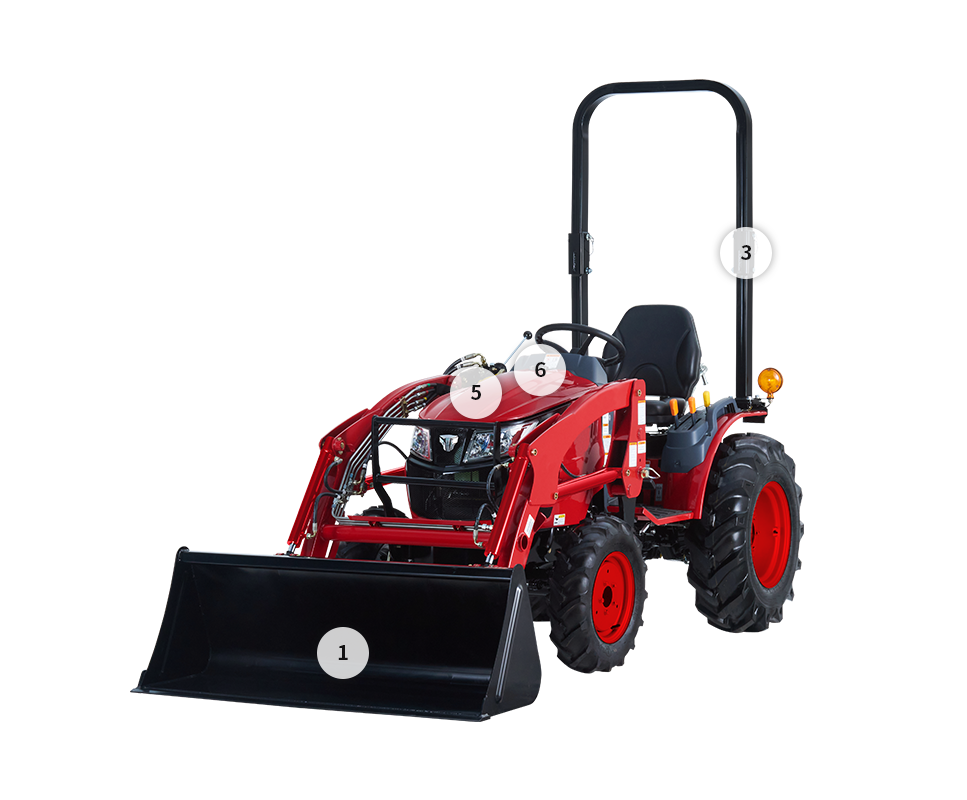

A sub-compact tractor engineered for productivity inside and out
The T255 tractor is proof that great things can indeed come in small packages. Offering enhanced power without sacrificing maneuverability, it’s equipped with a powerful engine and ergonomic operator controls, ensuring both performance and comfort.
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

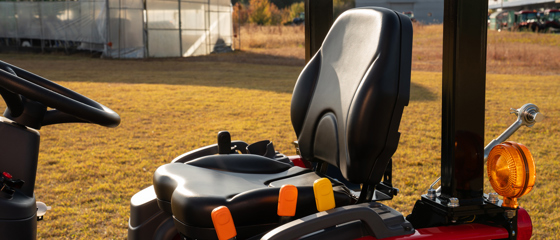

Ergonomic features for enhanced productivity
A wide operator cabin with a flat floor offers good visibility and ample leg room, promoting comfortable operation. All controls are within arm’s reach, including a dial to control the cutting height of the mid-mount implement. The accelerator, brake pedal, differential lock, and parking brake are easily accessible on the floor of the cabin, located precisely where you expect them to be. These features make this tractor easy to operate, even for novice drivers.

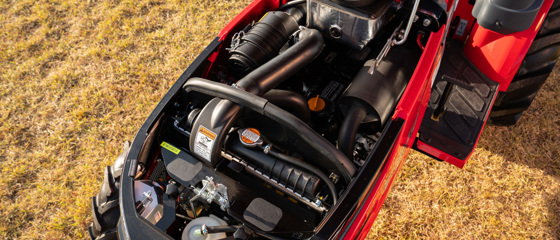

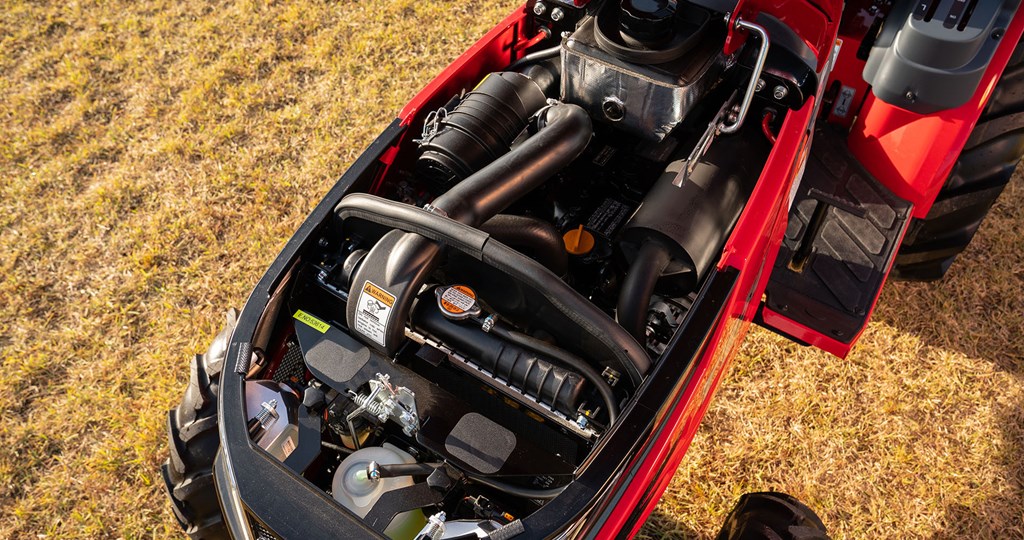

High torque, water-cooled Yanmar diesel engine
The Japanese made Yanmar engine offers more torque with less revs compared to competitors in its class. Since it is water cooled, the engine warms up faster and stabilized temperature more effectively while the tractor is running. The engine is also Stage V certified, including for noise emission standards.
2-range HST for smooth operation
Accompanied by the power steering, the responsive 2-range hydrostatic controls on this tractor ensures a smooth ride. It reduces the need for operator effort, particularly while operating the optional front-end and rear implements.

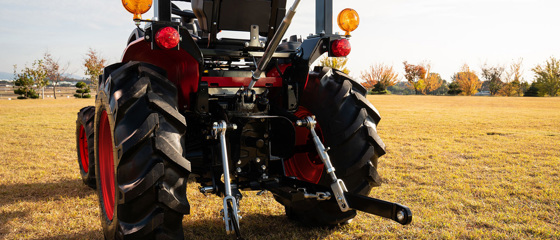

3-point hitch with powerful lift capacity
The 3-point linkage on the rear has an impressive lift capacity that reaches the end ball joint. The rear PTO control can be used to adjust rpm based on the task, increasing it for more intensive ground engagement like slashing or digging.
Mid-mount linkage for mowing implements
The mid-mount linkage on the tractor allows easy installation for a mower up to 54 inches wide. Cutting height can be adjusted easily during operation using the dial on the operator console, so patches of overgrowth can be tackled more efficiently.

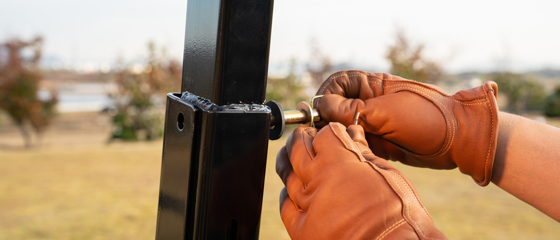

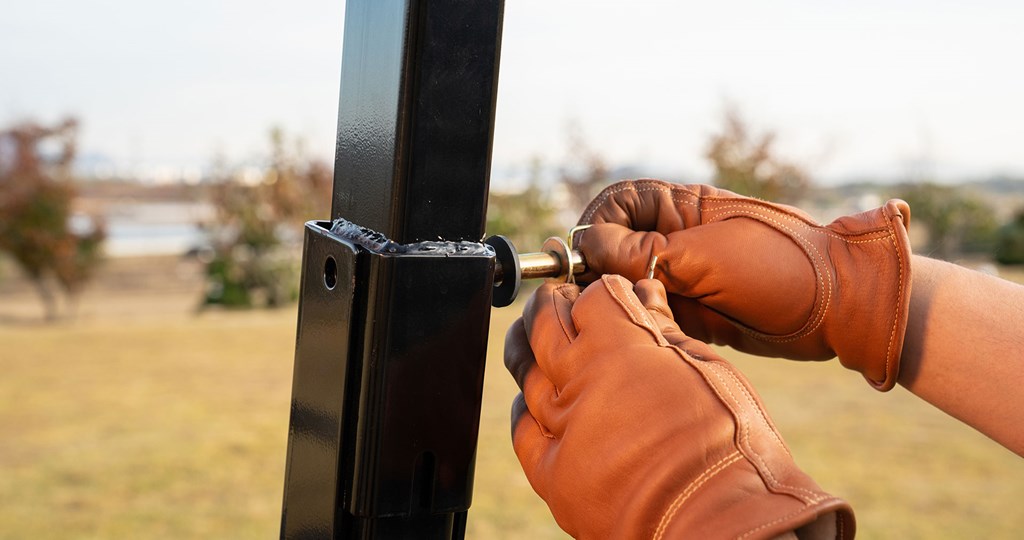

Foldable ROPS for storage in low-ceiling structures
The Roll Over Protective Structure (ROPS) of the tractor is designed to be folded, allowing for easy storage in low-ceiling garages or sheds.

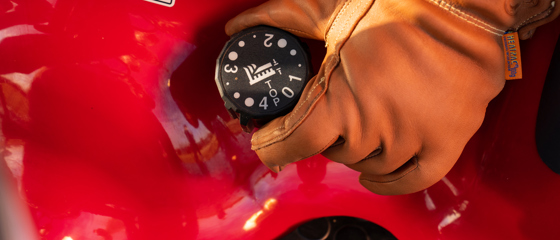

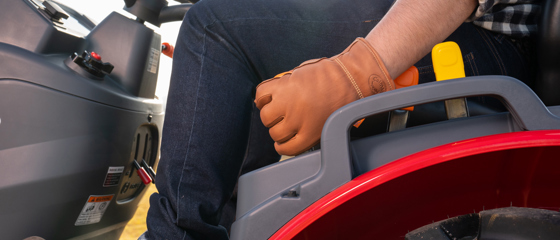

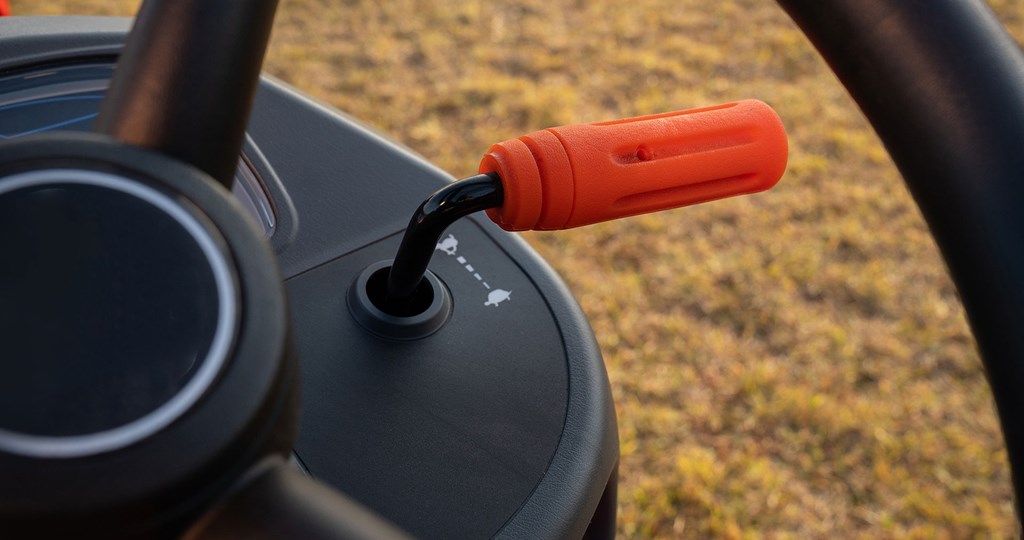

Controls to speed up, slow down, raise or lower implements
Even while the tractor is in motion, a dedicated PTO lever can be used to speed up or slow down implement rpm, while the dial can raise and lower implements at the prescribed speed.

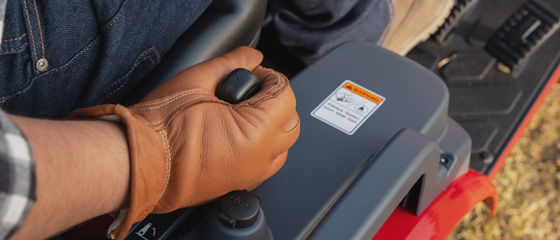

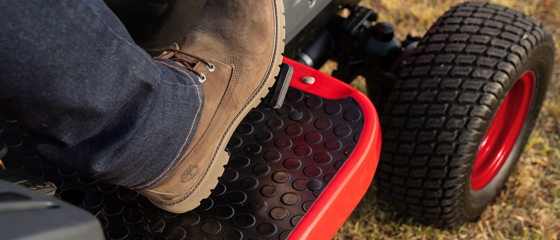

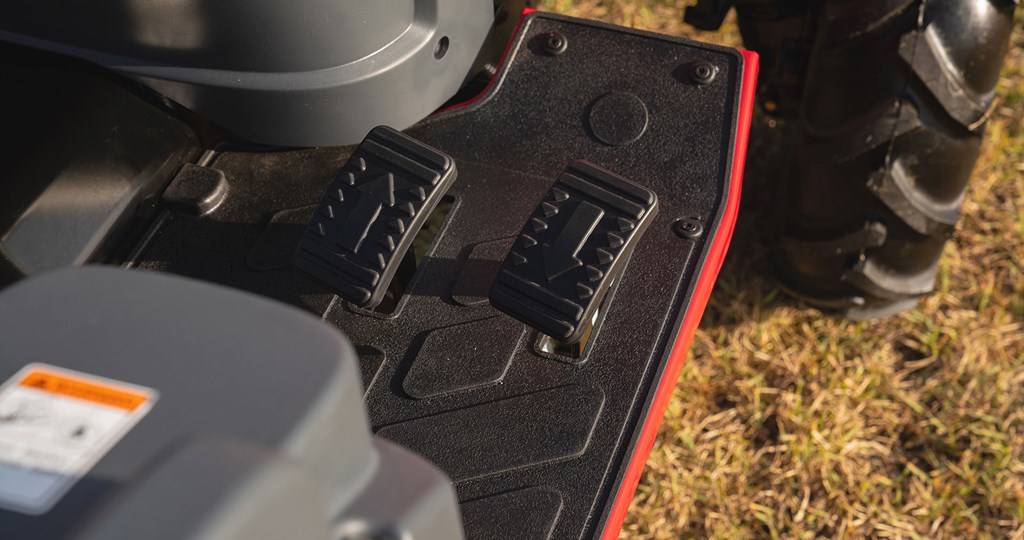

HST for infinitely variable drive speed
Responsive hydrostatic controls offers a smooth ride for operators, from the forward and reverse pedal to the powered steering wheel. These controls reduce the need for operator effort during a range of tasks, particularly while operating the optional front-end loader.
All the right features to get the job done
Complete a range of jobs with a TYM Series 1 tractor. Achieve results faster with a powerful high-torque engine, control attachments easily with a PTO switch, and stay energized with an ergonomically designed operator station.
Designed for applications in and around your property
This tractor allows you to go beyond a riding mower, without compromising on ease of operation and maneuverability. Multi-functional capabilities and a compact frame come together for a definitive upgrade from traditional machinery and maintenance tools.
Use this tractor to maintain a healthy lawn, build a home garden, tackle yard work, or create space for a lively home farm. Linkage points for a front loader, mid-mount and rear hitch enable you to attach a variety of attachments to complete tasks on your land.
Landscaping
With narrow dimensions, a small turning radius, intuitive controls, and a lightweight design, a TYM sub-compact tractor is the ideal machine for every home. A dedicated mid-mount linkage allows easy attachment to a range of mowers, while front-end and rear linkages allow for additional functionality compared to riding mowers.
Arable Farming
With a TYM sub-compact tractor, you can leverage multi-functional capabilities and ease of maneuverability to build and maintain your home garden. From tilling the land and spreading fertilizer to aerating and seeding your soil, this tractor is easy to operate and swap implements, enabling you to grow all types of plant life, simply and effectively.
Cleaning
Complete chores around your property quickly and affordably. From brushing dust and dirt from your driveway to lifting and dumping fallen leaves and other waste, a TYM sub-compact offers the right mix of size and power for maneuverability and efficient engine performance.
Livestock & Poultry
Comfortable to sit in and easy to operate, a TYM sub-compact tractor has the light design and small turning radius to assist with maintaining animal life at home. Level the yard, trim grass, spread feed, move hay bales, clear waste and much more.

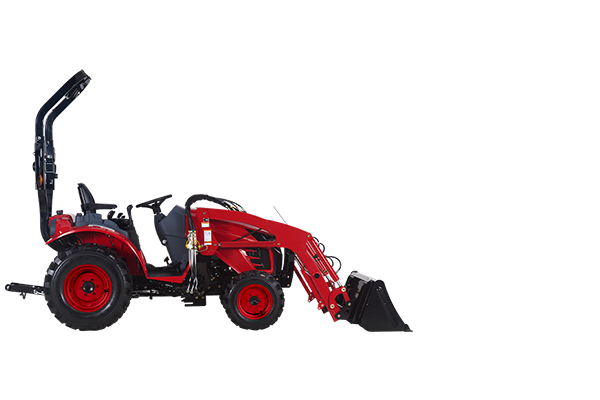

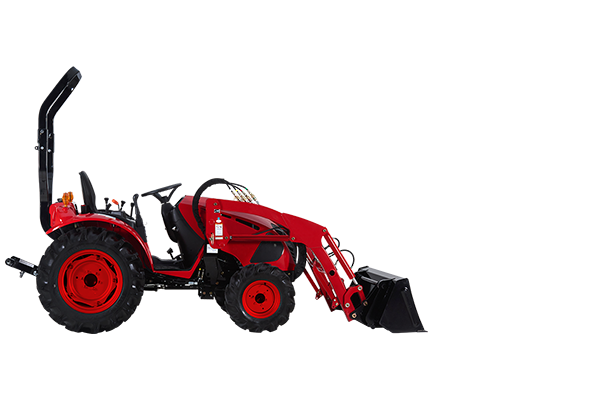

| Tractors Model | T255  | T265  | T25  |
Engine manufacturer | Yanmar 3TNV76-UD | TYM T1100N4 | Yanmar 3TNV80F-NXD |
Engine power | 25.3 hp | 18.9 kW | 24 hp | 18 kW | 24.7 hp | 18.4 kW |
Rated engine speed | 2800 rpm | 2600 rpm | 3000 rpm |
Displacement | 1116 cc | 68.1 cu. in. | 1175 cc | 71.7 cu. in. | 1267 cc | 77.3 cu. in. |
No. of speeds | SS: F6 x R2 HST: 2-Range | Infinite 2-Range | Infinite 2-Range |
Hitch lift capacity | 551 kg | 1214 lb | 696 kg | 1534 lb | 703.6 kg | 1551.2 lb |
PTO rear | 540 rpm | 540 rpm | 540 rpm |

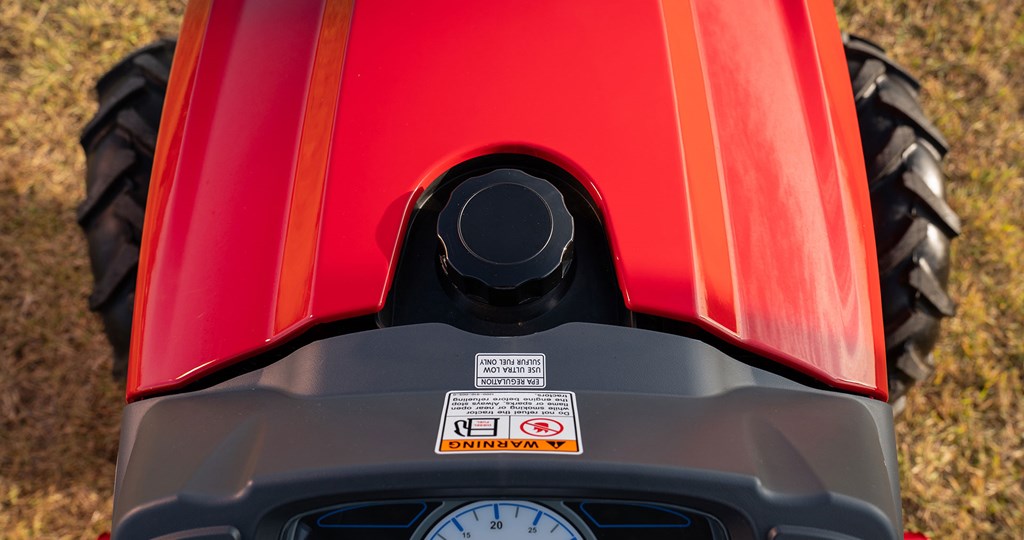

Fuel tank | 22 L | 5.8 gal | 25 L | 6.6 gal | 25 L | 6.6 gal |
Overall length with 3-point hitch | 2668 mm | 100.5 in. | 2868 mm | 112.9 in. | 2829 mm | 111.4 in. in. |
Overall width | 1286 mm | 50.6 in. | 1430 mm | 56.3 in. | 1384 mm | 54.5 in. |
Wheelbase | 1460 mm | 57.5 in. | 1480 mm | 58.3 in. | 1550 mm | 61 in. |
Height to top of ROPS | 2320 mm | 91.3 in. | 2514 mm | 99.0 in. | 2505 mm | 98.6 in. |
Min. ground clearance | 240 mm | 9.4 in. | 240 mm | 9.4 in. | 267 mm | 10.5 in. |
Weight with ROPS | 843 kg | 1858.5 lb | 995 kg | 2193.6 lb | 1100 kg | 2425 lb |
Weight with cab | - | - | - |
R1 Agricultural - Front | 6.0-12 4PR | 6.0-12 4PR | 6-12 4PR |
R1 Agricultural - Rear | 9.5-16 6PR | 9.52-20 6PR | 9.5-20 6PR |
| Download | Technical Brochure | Technical Brochure | Technical Brochure |
