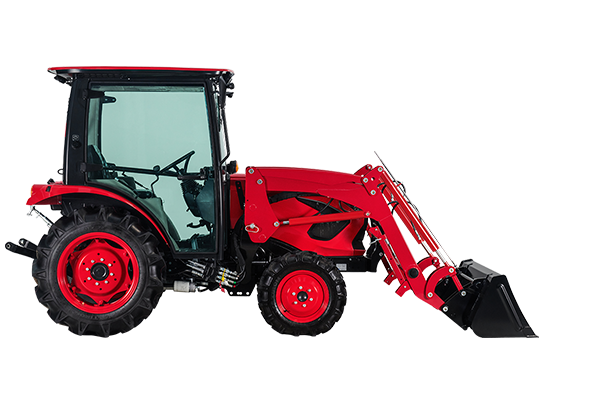

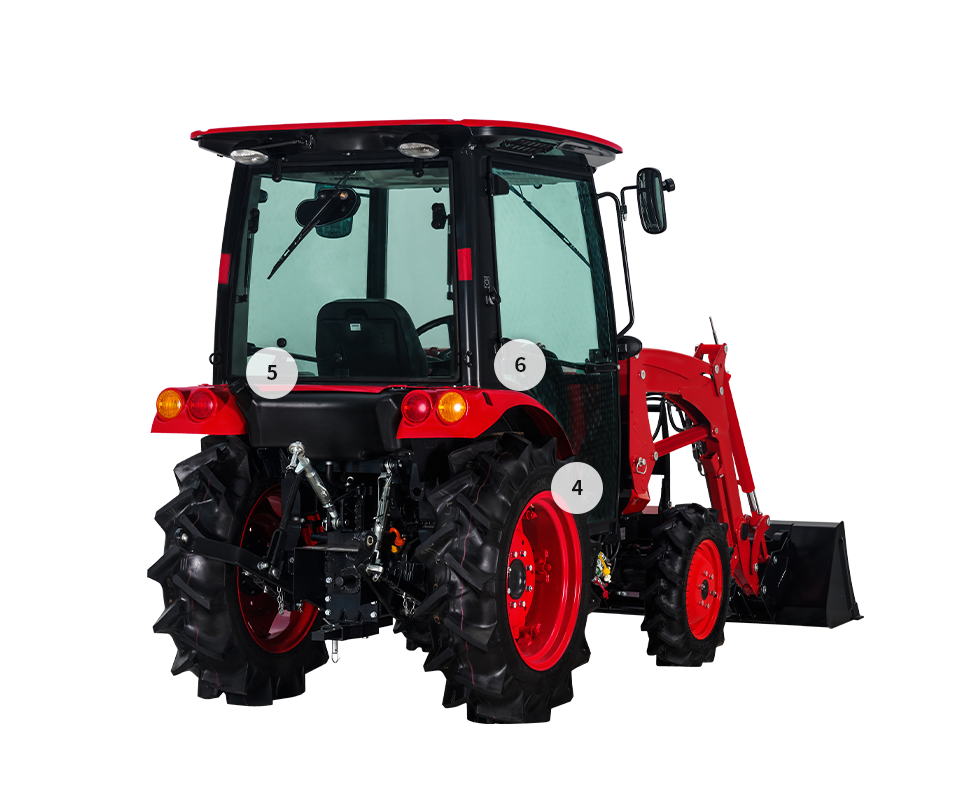

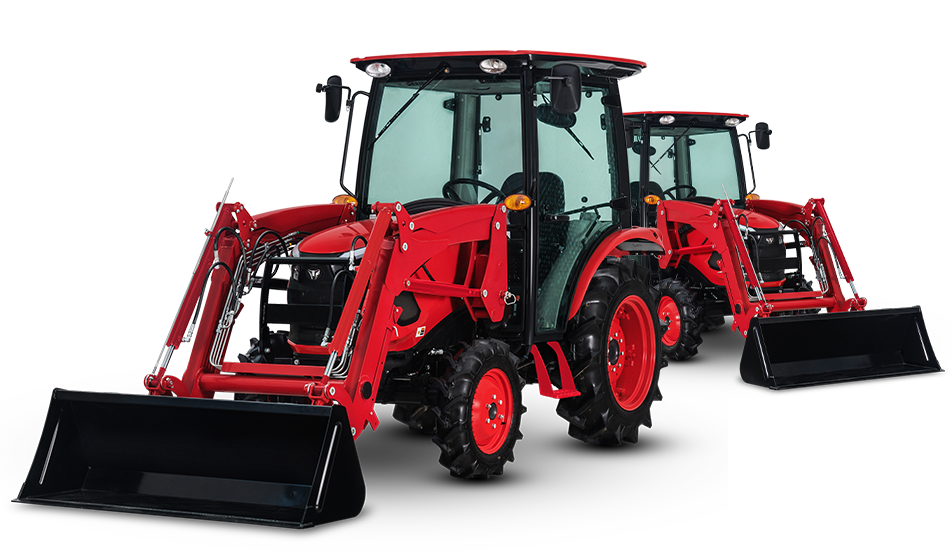

F50C
Series 3 , Compact Tractors
Engine manufacturer
48 hp
Engine power
1500 kg
Hitch lift capacity
A compact tractor that doesn’t compromise on performance
The F50C strikes a perfect balance between agility and strength, making it an ideal partner for jobs of all sizes. Its compact design offers the versatility you need, while its power empowers you to tackle even the toughest tasks on and off the field
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.
Eco-friendly TYM 4-cylinder Stage V engine
Equipped with a naturally aspirated engine designed and manufactured by TYM, the tractor is designed to be eco-friendly and fuel-efficient without compromising on performance.
Tilt steering wheel
The tilt steering wheel allows operators to adjust the position of the steering wheel for a more comfortable driving experience.

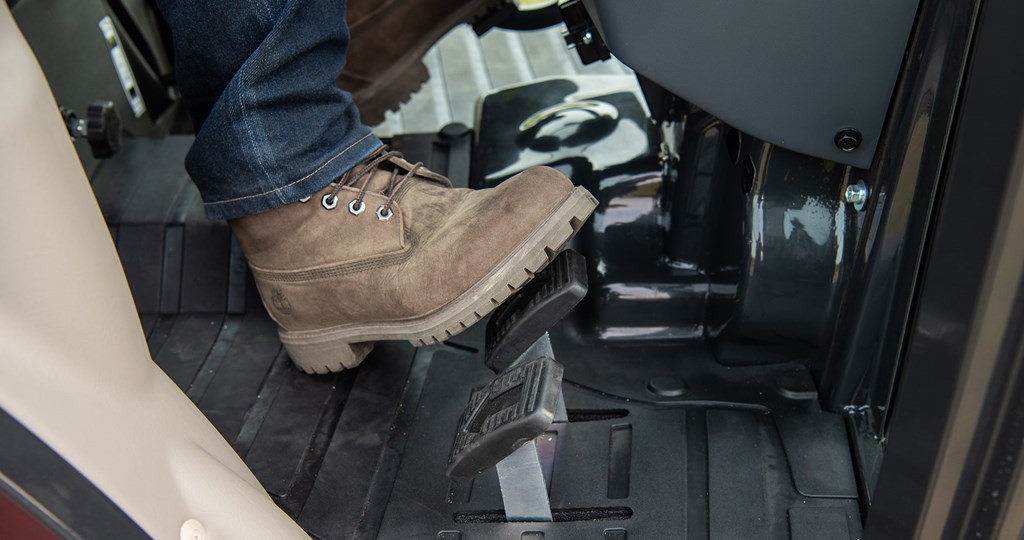

Cruise control (HST)
The cruise control function allows you to set and maintain engine RPM, regardless of the tractor’s load conditions.
LED work light (optional)
Full front and rear LED work lights facilitate safer operations, particularly in low visibility conditions such as rainy or dusty work environments, or during nighttime tasks.

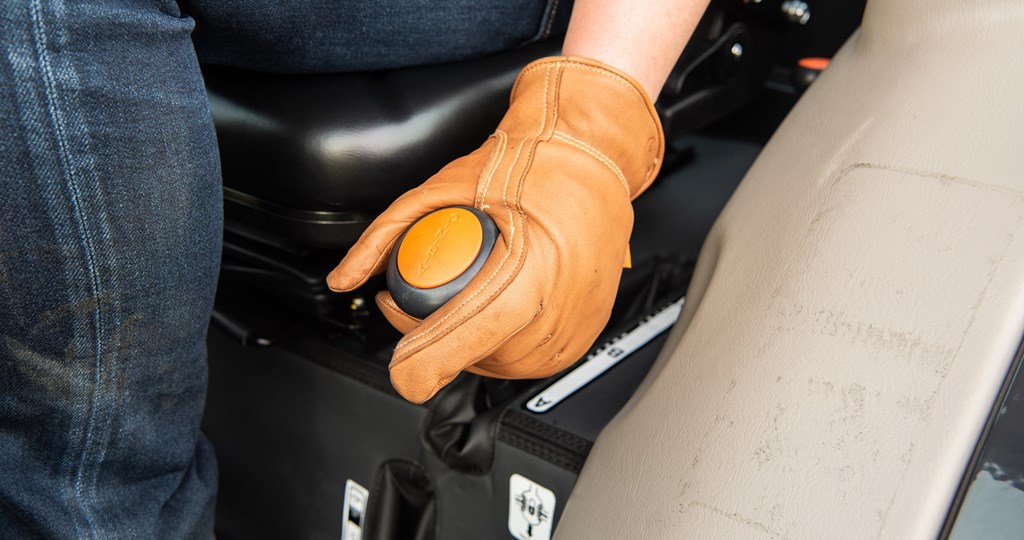

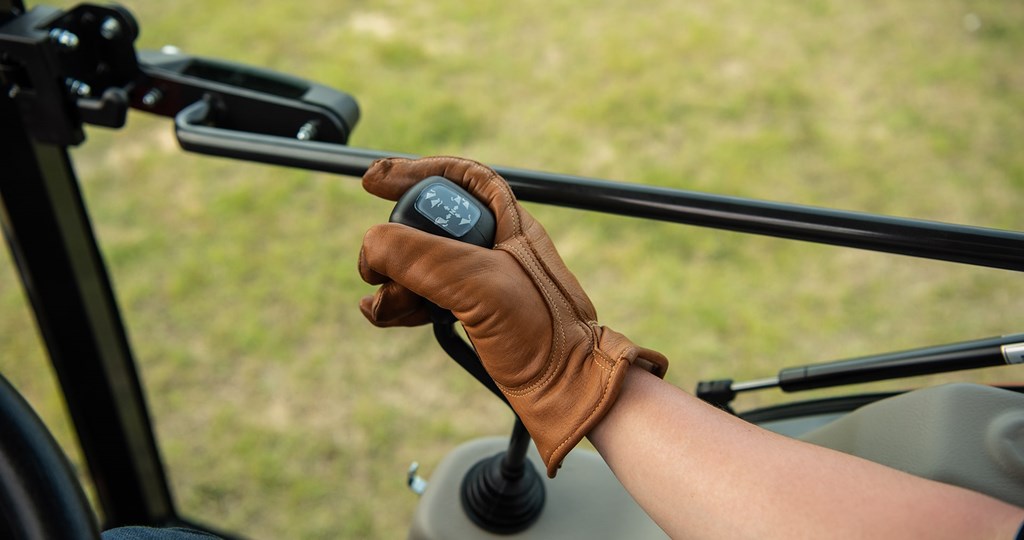

Enhanced attachment controls for efficiency
Equipped with a range of controls and two sets of rear remote valves to increase productivity and work speed. Control implement lowering speed and depth with the implement lowering speed dial and draft control levers.
Water-separating fuel filter
The water-separating fuel filter prevents foreign substances from entering the fuel, ensuring better engine starting performance and preventing damage to the machine.

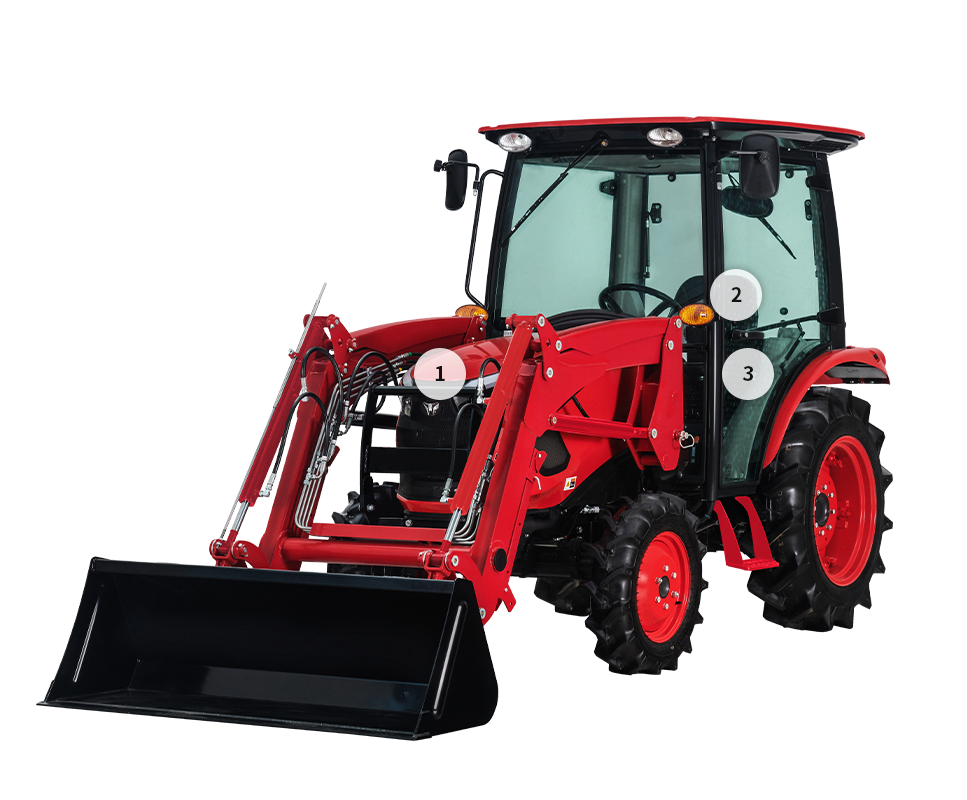

All the right features to get the job done

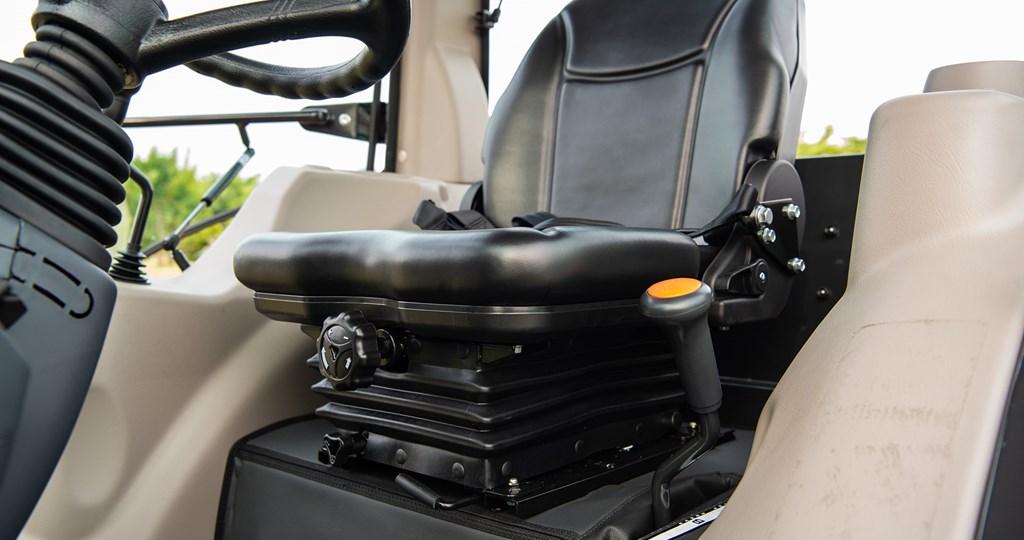

Complete a range of jobs with a TYM Series 3 tractor. Achieve results faster with a powerful high-torque engine, control attachments easily with a PTO switch, and stay energized with an ergonomically designed operator station.
All the right features to get the job done
This compact tractor has enhanced lift capacities, maximizing work capabilities while maintaining one of the most compact frames. Functional design and precision engineering come together to create the ultimate tractor, from the Stage V certified engine and third-function ready rear hitch, to the ergonomically configured operator platform.
Use this tractor to maintain a healthy lawn, build a home garden, take care of yard work with ease, or create space for a lively home farm. Front-end loader, mid-mount mower and rear hitch linkages enable you to attach a variety of attachments and do more per cycle.
Arable Farming
Excellent for working in tight and narrow spaces, this tractor features powerful lift and leveling capabilities optimized for orchards, greenhouses, vineyards, and more.
Construction
Greater lift capabilities and gear controls help drive project completion efficiently, whether it’s a simple task like installing a mailbox or larger jobs like building a fence.
Snow Clearing
TYM tractors are equipped with better engine controls and larger fuel tanks, allowing them to perform a variety of tasks for longer periods of time, even in extreme cold conditions.
Landscaping
Greater control over engine speeds and compatibility with a range of specialized attachments allow access to narrower spaces, promoting productivity and faster results.

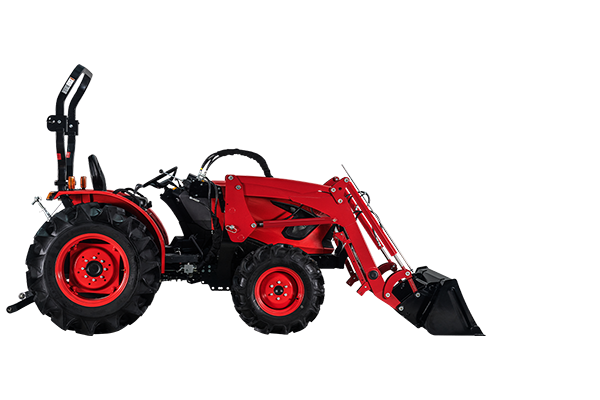

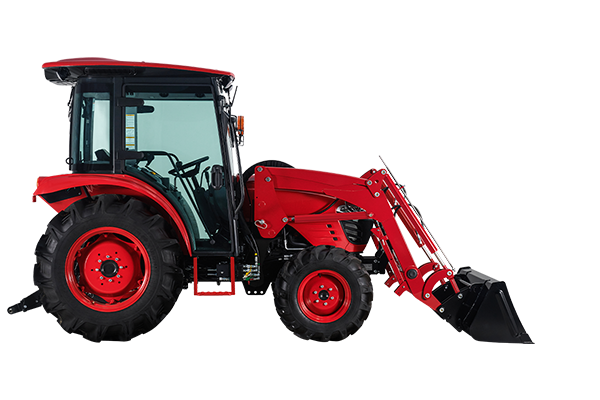

| Tractors Model | F50C  | F50  | 5025C  |
Engine manufacturer | TYM T2300N2 | TYM T2300N2 | TYM T2300N2 |
Engine power | 48 hp | 36 kW | 48 hp | 36 kW | 48 hp | 36 kW |
Rated engine speed | 2600 rpm | 2600 rpm | 2600 rpm |
Displacement | 2287 cc | 139.5 cu. in. | 2287 cc | 139.5 cu. in. | 2286 cc | 139.5 cu. in. |
No. of speeds | F50CN: F12 x R12 F50CHN: 3-Range | F50RN: F12 x R12 F50HN: 3-Range | 5025C: F12 x R12 5025CH: 3-Range |
Hitch lift capacity | 1500 kg | 3306 lb | 1500 kg | 3306 lb | 1456 kg | 3210 lb |
PTO rear | 540/540E rpm | 540/540E rpm | 540/540E rpm |

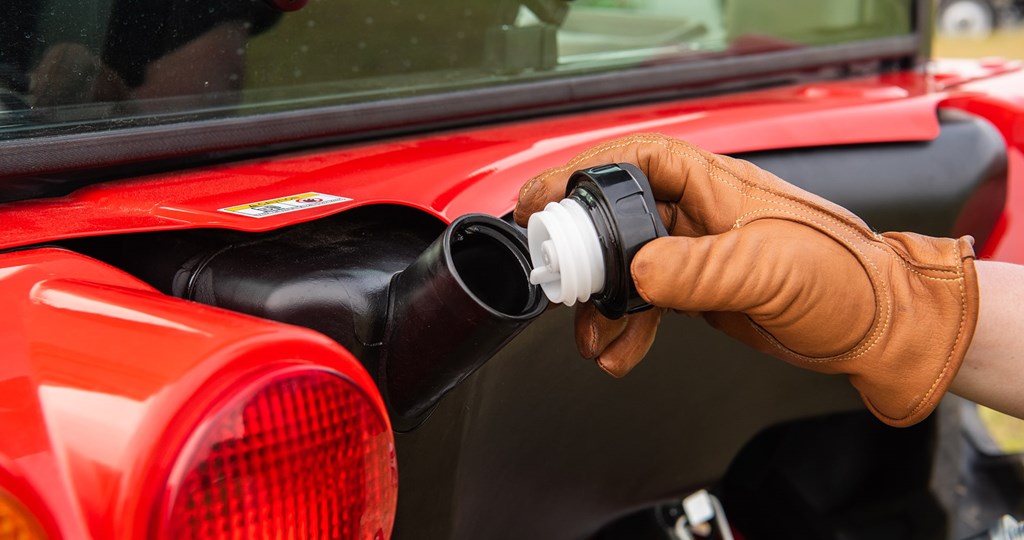

Fuel tank | 30 L | 7.9 gal | 30 L | 7.9 gal | 45 L | 11.9 gal |
Overall length with 3-point hitch | 3380 mm | 133.1 in. | 3380 mm | 133.1 in. | 3421 mm | 134.3 in. |
Overall width | 1477 mm | 58.15 in. | 1491 mm | 58.70 in. | 1814 mm | 71.4 in. |
Wheelbase | 1670 mm | 65.7 in. | 1670 mm | 65.7 in. | 1806 mm | 71.1 in. |
Height to top of ROPS | - | Front-ROPS: 2462 mm | 96.93 in. ROPS: 2515 mm | 99.02 in. | - |
Min. ground clearance | 443.5 mm | 17.46 in. | 443.5 mm | 17.46 in. | 391 mm | 15.4 in. |
Weight with cab | F50CN: 1711 kg | 3772.1 lb F50CHN: 1702 kg | 3752.3 lb | - | 5025C: 2030 kg | 4475.4 lb 5025CH: 2026 kg | 4466.6 lb |
Weight with ROPS | - | F50RN Front-ROPS: 1560 kg | 3439 lb ROPS: 1548 kg | 3413 lb F50HN Front-ROPS: 1551 kg | 3419 lb ROPS: 1539 kg | 3393 lb | - |
R1 Agricultural - Front | 7-16, 6PR | 1: 7-16 6PR 2: 8-16 4PR 3: 280/70R16 4: 215/70R16 | 1: 7-16 6PR 2: 8-16 4PR 3: 8-18 8PR 4: 9.5-16 6PR |
R1 Agricultural - Rear | 11.2-24, 8PR | 1: 11.2-24 8PR 2: 12.4-24 6PR 3: 380/85R24 4: 44x18-20 | 1: 12.4-24 6PR 2: 13.6-24 8PR 3: 13.6-24 8PR 4: 13.6-26 8PR |
| Download | Technical Brochure | Technical Brochure | Technical Brochure |
