T475
Series 3 , Compact Tractors
Engine manufacturer
45.3 hp
Engine power
1220 kg
Hitch lift capacity
A powerful compact tractor that helps you push the limits
Tackle challenges in tight spaces with the T475. Compact but durable and expertly engineered for efficiency, this tractor excels in greenhouses, orchards, and other confined areas where space is limited but power can’t be compromised.
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

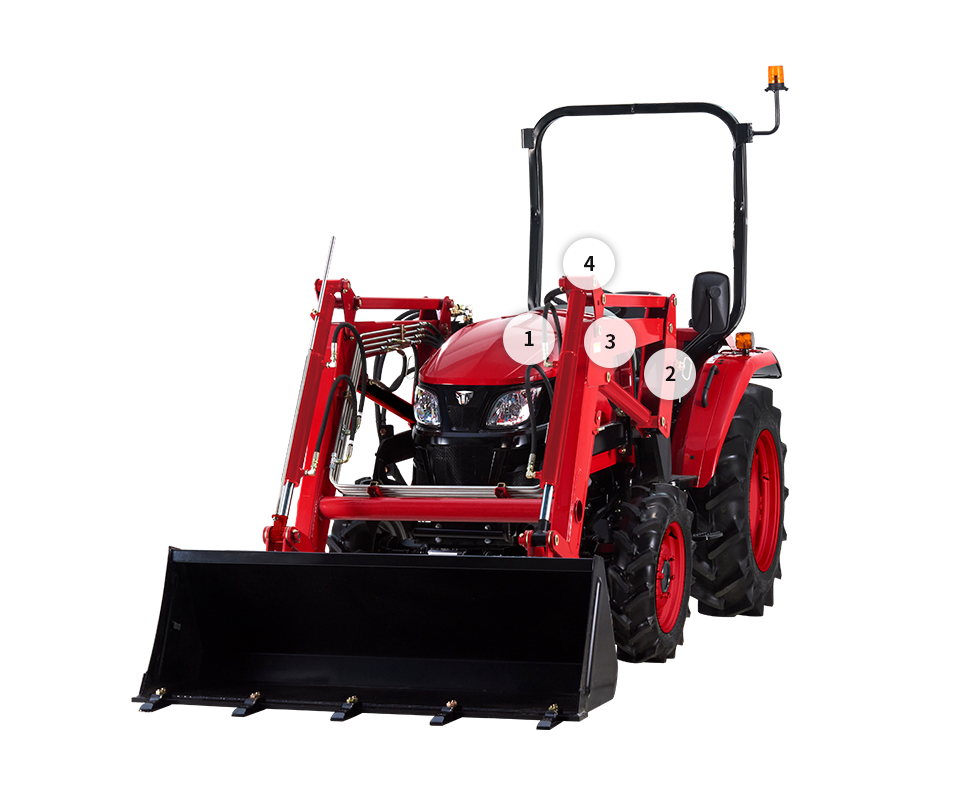

4-cylinder TYM diesel engine with high output
Equipped with a powerful, Stage V certified 4-cylinder engine, this tractor has an output comparable to utility tractors while maintaining the dimensions of a sub-compact tractor. The durable body and efficient engine come together to perform medium-duty applications efficiently and productively.
External lever to adjust rear attachments
Along with in-cabin controls, this tractor has an external position lever near the 3-point hitch. Operators can adjust attachment positions immediately after connection without returning to the cabin, enabling quick and convenient attachment switching, which enhances tractor versatility.

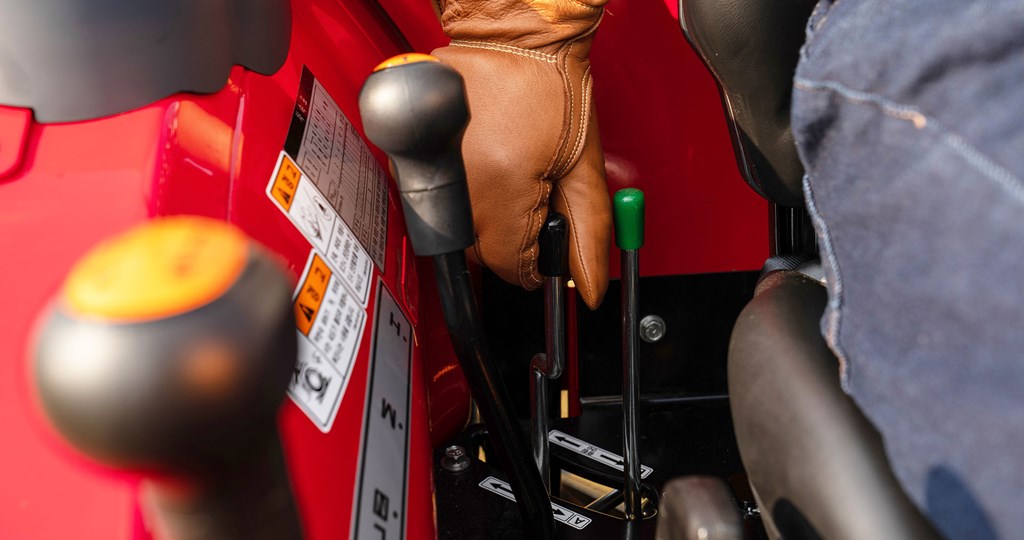

Total control over attachments

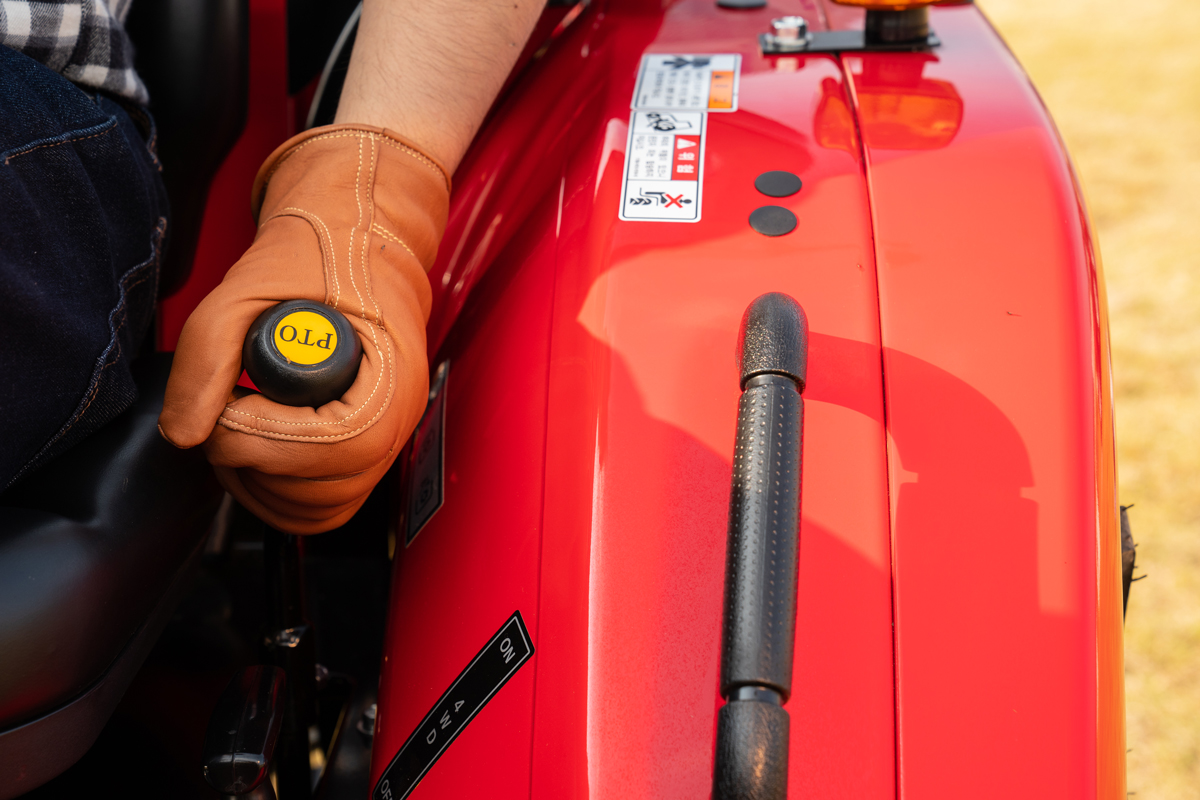

Even while the tractor is in motion, a dedicated PTO lever can be used to speed up or slow down implement rpm, while the dial can raise and lower implements at the prescribed speed.
Easy to open hood for convenient maintenance
The tractor hood can be opened in one motion, providing easy access to the engine and other systems for daily checks, routine service, and maintenance. The side panel can also be removed easily without the need for specialized tools.

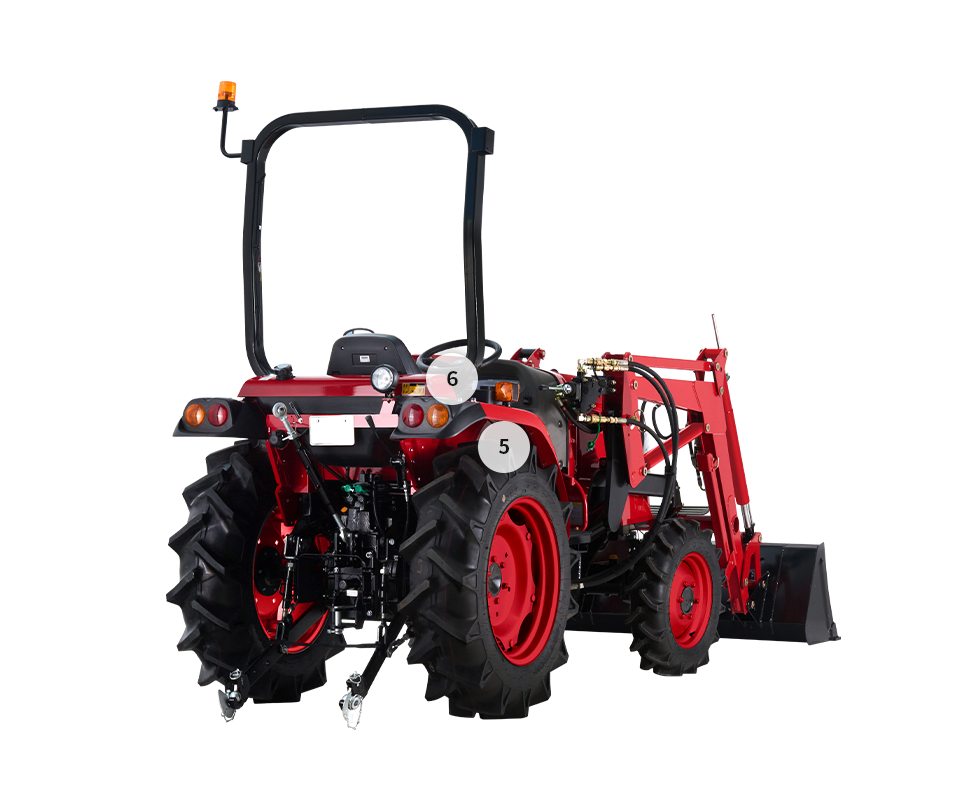

3-point hitch with powerful lift capacity
The 3-point linkage on the rear has an impressive lift capacity that reaches the end ball joints. The rear PTO control can be used to adjust rpm based on the task, increasing it for more intensive applications like slashing and digging.
High-capacity fuel tank for time-intensive work
The high-capacity fuel tank allows the tractor to operate for longer periods without stopping to refuel. Paired with a fuel-efficient engine, this enables uninterrupted and efficient operations during the busiest seasons.
Powerful features to drive tractor performance

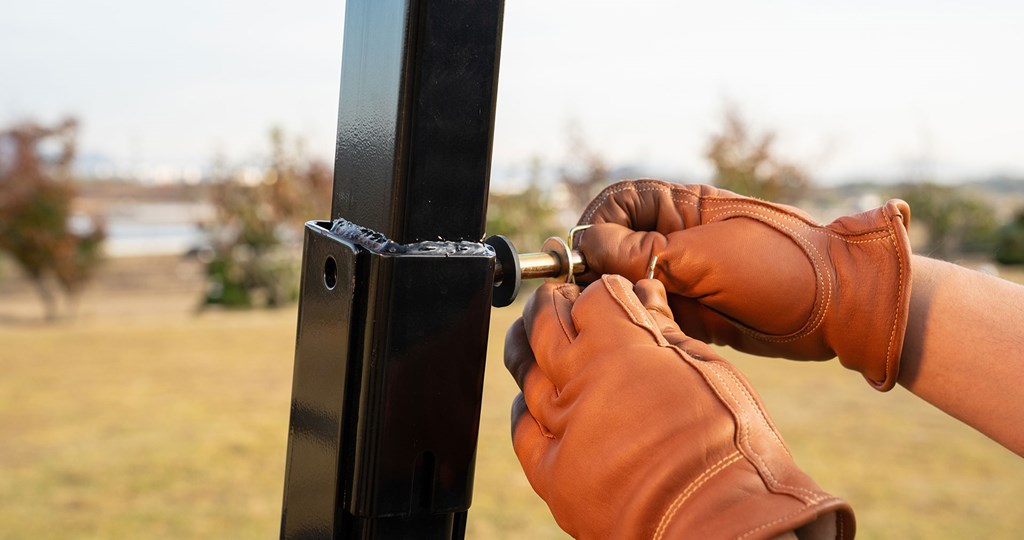

Leverage a range of features to complete a variety of jobs, quickly and effectively. Available with a foldable ROPS or heated cabin, this Series 3 tractor keeps operators comfortable to take on challenges in warm or cold weather.
Designed for applications in and around your property
This compact tractor has enhanced lift capacities, maximizing work capabilities while maintaining one of the most compact frames. Functional design and precision engineering come together to create the ultimate tractor, from the Stage V certified engine and third-function ready rear hitch, to the ergonomically configured operator platform.

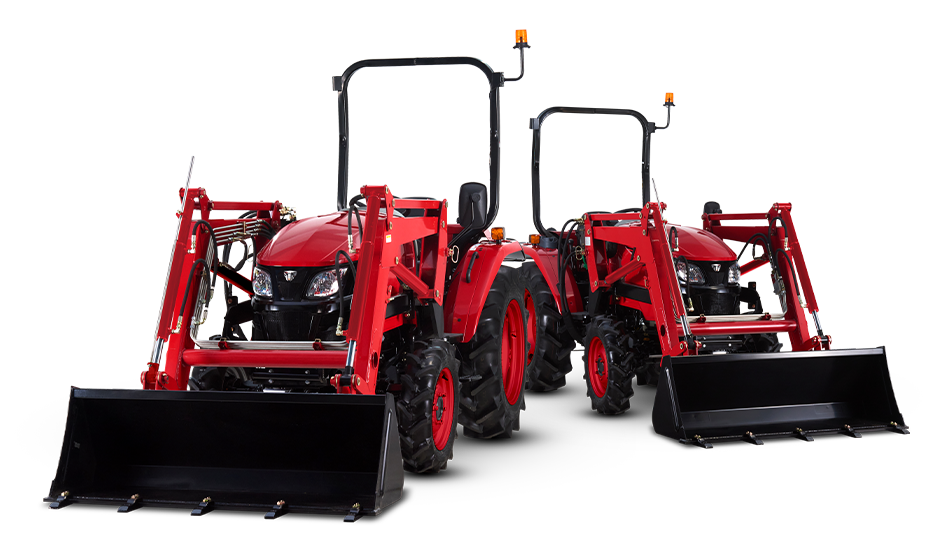

Use this tractor to maintain a healthy lawn, build a home garden, take care of yard work with ease, or create space for a lively home farm. Front-end loader, mid-mount mower and rear hitch linkages enable you to attach a variety of attachments and do more per cycle.
Arable Farming
Excellent for working in tight and narrow spaces, this tractor features powerful lift and leveling capabilities optimized for orchards, greenhouses, vineyards, and more.
Construction
Greater lift capabilities and gear controls help drive project completion efficiently, whether it’s a simple task like installing a mailbox or larger jobs like building a fence.
Snow Clearing
TYM tractors are equipped with better engine controls and larger fuel tanks, allowing them to perform a variety of tasks for longer periods of time, even in extreme cold conditions.
Landscaping
Greater control over engine speeds and compatibility with a range of specialized attachments allow access to narrower spaces, promoting productivity and faster results.

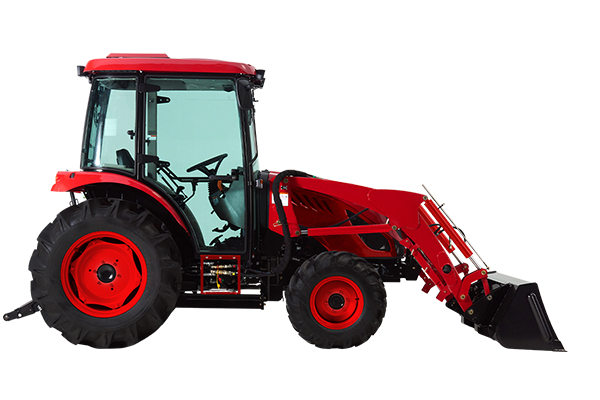

| Tractors Model | T475  | T395  | T455  |
Engine manufacturer | TYM T2300N3 | Yanmar 3TNV88C-D | Yanmar 4TNV88C-K |
Engine power | 45.3 hp | 34 kW | 36.9 hp | 27.5 kW | 46.6 hp | 34.3 kW |
Rated engine speed | 2600 rpm | 3000 rpm | 2800 rpm |
Displacement | 2287 cc | 139.5 cu. in. | 1642 cc | 100.2 cu. in. | 2190 cc | 133.6 cu. in. |
No. of speeds | SS: F12 x R12 HST: 3-range | SS: F12 x R12 HST: 3-range | SS: F16 x R16 HST: 3-range |
Hitch lift capacity | 1220 kg | 2689.6 lb | 1197 kg | 2639 lb | 1503 kg | 3314 lb |
PTO rear | 540 rpm | 540 rpm | 540/1000 rpm |
Fuel tank | 34 L | 9.0 gal | 34 L | 9.0 gal | 60 L | 17.0 gal |
Overall length with 3-point hitch | ROPS: 3400 mm | 133.9 in. Cab: 3450 mm | 134.6 in. | Front-ROPS Mechanical: 3310 mm | 130.3 in. HST: 3290 mm | 129.5 in. Cab Mechanical: 3360 mm | 132.3 in. HST: 3340 mm | 131.5 in. | 3929 mm | 154.7 in. |
Overall width | 1440 mm | 56.7 in. | 1715 mm | 67.5 in. | 1837 mm | 72.3 in. |
Wheelbase | Mechanical: 1770 mm | 69.7 in. HST: 1750 mm | 68.9 in. | Front-ROPS Mechanical: 1640 mm | 64.6 in. HST: 1680 mm | 64.1 in. Cab Mechanical: 1700 mm | 66.9 in. HST: 1680 mm | 64.1 in. | 1935 mm | 76.2 in. |
Height to top of ROPS | 2440 mm | 96.1 in. | Front-ROPS: 2200 mm | 86.6 in. ROPS: 2440 mm | 96.1 in. | 2590 mm | 116.1 in. |
Min. ground clearance | 315 mm | 12.4 in. | 270 mm | 10.6 in. | 321 mm | 12.6 in. |
Weight with ROPS | 1565 kg | 3450.2 lb | F-ROPS: 1465 kg | 3229.8 lb ROPS: 1494 kg | 3293.7 lb | 1875 kg | 4133.7 lb |
Weight with cab | - | 1650 kg | 3637.6 lb | 1975 kg | 4354.1 lb |
R1 Agricultural - Front | 8.0-16 4PR | 8.0-16 4PR | 1: 9.5-16 6PR 2: 240/70 R16 3: 260/70 R16 4: 260/70 R16 5: 280/70 R16 6: 280/70 R16 |
R1 Agricultural - Rear | 12.4-24 6PR | 12.4-24 6PR | 1: 13.6-26 8PR 2: 320/70 R24 3: 320/85 R24 4: 340/85 R24 5: 380/85 R24 6: 360/70 R28 |
